Farm Machinery ATV Attached Grader Blade

Product Description

Product Description

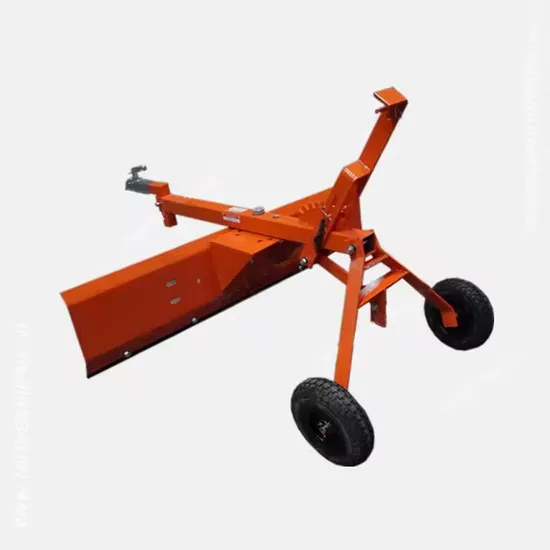

ATV Grader Blade
* The ATV grader blade is ideal for grading ,levelling ,spreading top soil or gravel.* The rear trailing wheels on the ATV grader blade can be adjusted heights making it easy to transport from one job to another with the tine off the ground.* Tow hitch is also adjustable 4 different heights to suit any ATV.* Tow ball.* Pneumatic tyres.* Powder coated or galvanized optional for request. Product Parameters

Model	3.5AGB	4AGB	5AGB	6AGB
Working Width	1050	1200	1500	1800
Dimensions	1025*1200*980	1225*1200*980	1525*1200*980	1825*1200*980
Matched Power	18-30	20-40	25-50	25-50
Hitch Type	ATV	ATV	ATV	ATV
N.W/G.W	85/94	90/100	93/110	100/125
Packing Size	1050*670*250	1250*670*250	1550*670*250	1850*670*250
Qty/20'GP	120	105	85	75

Detailed Photos

Packaging & Shipping
Company Profile
Yancheng Newbang Machinery Co., Ltd. is one of the major tractor implement and ATV implement manufacturers in China.Our products range: rotary tiller, backhoe, mower, post hole digger, wood chipper, log splitter, box blade with rippers and so on(30 series and more than 200 models).Newbang's implements are CE and ISO9001 certified and our products are mainly exported to North America, South America, Europe,Asia, etc. We get a good reputation from the worldwide customers.

FAQ
Q1. what's your main products?A: Our products are covered almost all farm machines.Q2: How long is the delivery date?A: In general, we can ship the goods within 15days after receiving your payment.Q3. Do you have after-sales service?A: Yes, all of our products have 12 month quality assurance to make sure that we supply you best quality.Q4. Can you print my brand name on it?A: Of course, you just need to send us the picture of your brand.Q5. what's your payment term?Usually 30% T/T deposit for the order after confirming the contract, and then 70% balance before shipping or against copy of B/L.Q6. Can I mix different models together?A: Yes, you can mix different products or models in a container and we will try our best to use the container place.Q7. what your terms of payment?A:T/T, L/C, and western union

---
