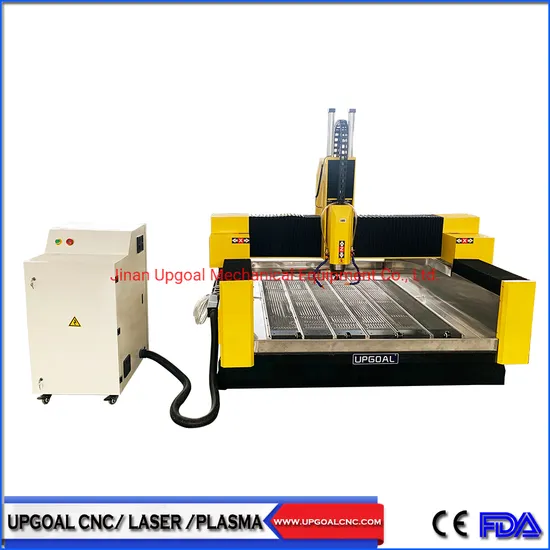

Middle Size 3D Relief Stone Marble Granite CNC Router Engraving Machine Heavy Duty

Product Description

Middle Size 3D Relief Stone Marble Granite CNC Router Engraving Machine Heavy Duty

Features
1.Adopted strong heavy duty T type sqaure steel tube structure strong rigidity, strong dynamics, ensuring the machine long time high speed moving and no deformation.
2. Integrated stainless steel water slot with working table & machine body more convienient for water collection and circulation.

3.XYZ-axis adopted imported Hiwin, Taiwan linear square guide rail, high precision,fast speed and good wear resistance.
4.XINYUE brand high precision helical rack and pinion transmission for XY-axis,fast speed and powerful. Z-axis with double nut lead ball screw transmission, good weight capacity and stable moving.
5. Powerful 5.5kw water cooling spindle( HQD brand ER25), easy to engraving all kinds of stone, not only fine engraving, but also the bottom smooth and clear. Bothway tools cooling system, effectively improve tools life time.
6.China famous Chuangwei stepper motor and Leadshine stepper driver DMA860H for XYZ-axis, high precision, faster speed and more stable. Dual motor and driver for Y-axis,ensuring the stable moving.
7. Optional DSP Offline/Mach3/NcStudio 3 axis/4 axis controller
8.Independent control cabinet, keeps the computer away from dust during working.
9.Special dustproof, waterproof device, effectively keep the transmission part cleaning and rust protection, more easy maintenance.
10. Semi-auto lubrication sysetem, more convenient and easy for whole machine lubrication.
11. Auto tool calibration, accurate and convenient for Z-axis 0 point setting.
12.Special several processing 0 point saving method.
13.Memory of break point and power failure,ensuring continue working after breaking point or next time processing.
14.Advanced file processing function, can timely correct faults, and good compatibility for Type3/Artcam/Mastercam/Caxa such file. Advanced three dimensional curve forcast algorithm, stable broken line, ensuring the curve moving speed & precision.
Technical Parameters

Effective working area	1300(X)mm*1300(Y)mm*350(Z)mm
Materials	Heavy duty square steel pipe welded structure
Working table	Strong aluminum alloy T slot
Cooling system	Stainless steel water slot cooling( Integrated)
Moving type	Gantry moving
Guide rail	Linear square guide rail ( Hiwin, Taiwan)
Transmission	XINYUE brand Helical rack &pinion for X Y -axis, TBI Lead ball screw for Z-axis
Driving mode	Stepper motor (Chuang wei) and driver (Leadshine DMA 860H ) for XYZ-axis
Spindle motor	5.5kw water cooling, ER25
Spindle speed	0-24000rpm
Inverter	Fuling
Voltage	AC 220V, 50/60Hz, single phase or AC 380V, 50/60Hz, three phases
Traveling speed	>28000mm/min
Engraving speed	>15000mm/min
Machine accuracy	0.03mm
Control system	DSP offline/Mach3/NcStudio
Suitable software	Artcam, Type3, Ucancam V9,etc
Carving Instructions	G code *Uoo *mmg *plt HPGL
Running environment temperature	0-45 ºC
Relative humidity	30%-75%
Lubrication system	Semi-auto
Tool calibration	Auto
Certificate	CE

Application
Mainly used for natural marble, granite, artificial stone, tombstone, milestone, tile, glass, bluestone,sandstone, crystal, microlite,mural, village tablet inscription, decoration skirting line,...such relief engraving, singlet line, character, flat pattern engraving, with rotary axis, can for stone cylinder,breast board, handrail, dragon columns,figure of Buddha...engraving.
Reference Sample Photos

Reference Working Videos

https://youtu.be/hsiD2faQf7A
https://youtu.be/tgGpPlL4WFU


For more information, just feel free to contact us!
