Product Details
Product Description
Product Description
Movable Elictric and gasoline Mobile Vacuum Breast Cow Milking Machine1.Mobile Cow Milking Machine Introduce:
For our Cow milking machine, according to the size of the milking cup, it is suitable for different animals, such as cows and goats etc. According to the need number of barrels,the vacuum pump Mobile Cow Milking Machine can be divided into the Single-barrel Type and Double-barrels Type. According to the different motive power, the mobile milking machine is divided into vacuum pump type And piston type. In Wenming Group, the machine number “JN” refers to the milking machine, V refer to the “Vacuum type” “P” refer to the the Number “01” refer to one bucket(single-barrel) “02” refer to two buckets(Double-barrels Type).
The Vacuum milking machine is including the vacuum pump, electric motor（these days the new type adding a gasoline powered model）, pulsator, milk tube, milking cup group and leglen be installed on one machine.
Cow Milking Machine Features:Based on the original model and according to the practical needs from the customers, our company developed this product after the research and design by experts, its features are unique design, easy operation, easy maintenance, vacuum stability, low noise, stability pulsating frequency, small vacuum fluctuations, and soft milking, Alternate milking front and back can massage and protect the udder, thus achieving the ideal effect of increasing production. Only one milker is needed to operate and maintain the machine.
It can work flexibly, without space constraints, be convenient and flexible.
It is suitable for all kinds of dairy farms and dairy raising by farmer households
It is also suitable for all kinds of nanny goat farms and nanny goat raised by farmers' families.
2.Mobile Cow Milking Machine Technical Parameters:Vacuum Mobile Cow Milking Machine ：
Name
| Vacuum Mobile Cow Milking Machine
|
Model
| JNV01
| JNV02
| JNV02-G
|
Gasoline powered
| N
| N
| Adding a Honda Engine
|
Material of Bucket
| stainless steel
|
Operating Vacuum Degree
| 0.04-0.05Mpa (adjustable)
|
Pulsation rates
| 60/40
|
Pulsation times
| 60-80 times/min
|
Swept volume(vacuum pump capacity)
| 250L/min
|
Power Fitted
| 0.75KW
| 1.1KW
| 1.1KW
|
Voltage
| 110/220V/240v , 50/60HZ
|
The Number of Milking Cattle Per Hour
| 10-12 cows per hour
| 20-24 cows
| 20-24 cows
|
Motor Speed
| 1440 rpm/min
| 1440 rpm/min
| 1440 rpm/min
|
The Number of Stainless Steel Milk Bucket(barrels )
| one (25kg)
| Two (each of capacity of 25kg)
| Two (each of capacity of 25kg)
|
Employees Needed When Milking
| 1
| 1
| 1
|
The Number of Milking Cup Group
| 1
| 2unites
| 2unites
|
Packing
| fumigation-free wooden case
|
|
Dimension of the machine
| 830L*590W*920H mm
| 830L*590W*920H mm
| 830L*650W*920H mm
|
N.W.:
| 58kg
| 78kg
| 90kg
|
G.W.
| 75
| 98
| 105
|
|
|
|
|
Video For JNV02-G gasoline engine Vacuum Breast Cow Milking Machine
Piston Advanced Mobile Milking Machine , NOT WIDLY SALED THES DAYS, if you want, we can manufacture for you.
Name
| PistonMobile Cow Milking Machine
|
Model
| JNP01
| JNP02
|
The Number of Stainless Steel Milk Bucket
| One ( capacity of 25kg)
| Two (each of capacity of 25kg)
|
The Number of Milking Cup Group
| one set
| two sets
|
Work efficiency
| 10-12 cows per hour
| 20-24 cows per hour
|
Operating Vacuum Degree
| 0.04-0.05 MPa (adjustable)
0.04-0.05 MPa (adjustable)
|
Pulsation Times
| 64 times per minute
64 times per minute
|
Power Fitted
| 0.55 KW
0.55KW
|
Voltage
| 110v, 220V, 240v or 380V
110v, 220V, 240v or 380V
|
Motor Speed
| 1440 rpm per minute
1440 rpm per minute
|
Employees Needed When Milking
| one
|
Dimension of the machine
| 830L*590W*920H mm
|

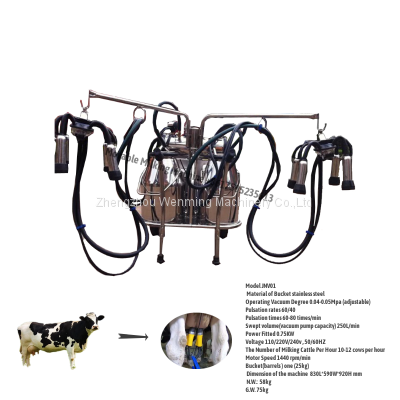

3.Mobile Cow Milking Machine Pictures:
>>
