Metal Roofing Tile with Stone Chips Coated (Ripple Tile)

Product Description

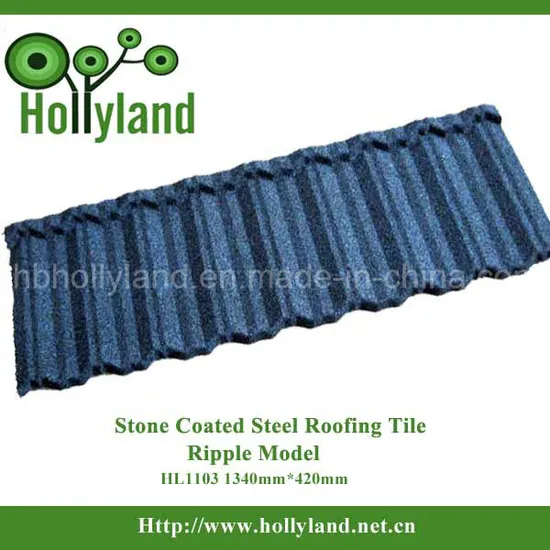

Stone Coated Steel Roofing Tiles(Ripple Tile)
Stone coated steel roofing tiles is based on Al-Zn steel. The surface and back protective films, together with the alloy composed of Aluminum and Zink, with natural stone, provides the usage of a long time span, which no less than 30 years.
This kind of tiles could be widely used at all kinds of buildings, such as residences, hotels, villas, horticultural structures, etc.

Parameters of Stone Coated Steel Roofing Tile
Name:	Stone coated steel roofing tile	Color:	Skyblue
Item No.:	HL1103	Color chat No.:	HLC210
Usage:	Roofing Materials	Basic pannel Thickness:	0.4mm
Style:	Ripple	Zinc Code:	40g per Sqm
Size:	1340x420mm	Packing:	Packed on Pallet
Hight:	35mm	Packing Size:	1.4x1.1x1.1cm
Exposure Size:	1290x370mm	Packing Quantity:	600Pcs per Pallet
Pcs per Sqm:	2.08	Quantity Per 20GP:	10500Pcs
Weight:	2.8kg/PC	use time span:	30years

Terms of Performance:
A, Economy - Energy saving, and this roofing tile is big acreage, and cutting down the physical distribution.
B, Earthquake Resistance - cause of the Stone Coated Steel roofing tile is more lighter than the concrete tile.
C, Fire Resistance - the main material of this tile are zinc-aluminium steel with the nature stone which have strong fire resistant.
D, Construction Simple - light weight, easy to bend and cut, suitable for all kinds of building, and could repeat execution.
E, Storm Resistance - and could reduce the noise in raining.
F, Heavy Wind Resistance, cause we use the horizontal fixing method is resist to lift up in winding.
G, Hail Resistance - the tile can resist cold, frozen and slip etc.
H, Long Lifetime - the base board is zinc-aluminium which with the high corrosion resistant.
I, Beautiful Appearance - with nature stone with varied colors.

Main Physical Testing
Test project	Test Results
Water resistance	After 24h test without anomalies
Heat resistance	No abnormalities after 90 x5h test
Low temperature resistance	After -40 x24h test without anomalies
Alkaline resistance	After 48h test without anomalies
Acid resistance	After 48h test without anomalies
Resistance salt spray	After 240h test without anomalies
Cycle of freezing and thawing	After 20 times test without anomalies
Artificial weathering	After 1000h test without anomalies

---
