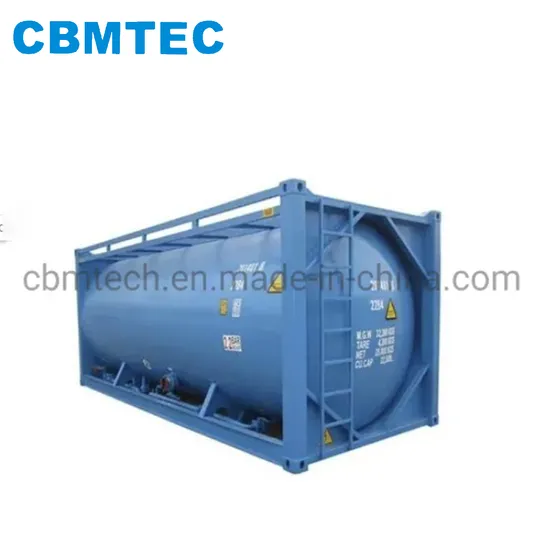

Factory Price 20FT ISO Tank Container From Cbm Technologies

Product Description

20'ft ISO Tank Container from CBM Technologies.-Capacity : 20ft;-Working pressure: 22bar;-Medium: LOX;-Insulation type: High vacuum multi-layer;-Inner vessel: Stainless steel;-Outer vessel: Carbon steel;-Design code: ASME.
Ref. Cryogenic Storage Tanks
The vacuum insulated cryogenic tank is widely used in machinery, chemical, chemical fiber, medical, food, metallurgy, mining, electronic and military industries.
The word cryogenics stems from Greek and means "the production of freezing cold"; however, the term is used today as a synonym for the low-temperature state. It is not well-defined at what point on the temperature scale refrigeration ends and cryogenics begins, but most scientists[2] assume it starts at or below -150 °C or 123 K (about -240 °F). The National Institute of Standards and Technology at Boulder, Colorado has chosen to consider the field of cryogenics as that involving temperatures below −180 °C (-292 °F or 93.15 K). This is a logical dividing line, since the normal boiling points of the so-called permanent gases (such as helium, hydrogen, neon, nitrogen, oxygen, and normal air) lie below −180 °C while the Freon refrigerants, hydrogen sulfide, and other common refrigerants have boiling points above −180 °C.
Ref. Main Descriptions of Cryogenic Storage Tanks:

Tank model	Medium	Volume(M3)	Working Pressure(Mpa)	Design standard	Container type
CFL-5	O2,N2,AR,CO2	5	0.8/1.6/2.2	GB/ASME	Vertical / horizontal
CFL-10	O2,N2,AR,CO2	10	0.8/1.6/2.2	GB/ASME	Vertical / horizontal
CFL-15	O2,N2,AR,CO2	15	0.8/1.6/2.2	GB/ASME	Vertical / horizontal
CFL-20	O2,N2,AR,CO2	20	0.8/1.6/2.2	GB/ASME	Vertical / horizontal
CFL-30	O2,N2,AR,CO2,LNG	30	0.6/0.8/1.6/2.2	GB/ASME	Vertical / horizontal
CFL-50	O2,N2,AR,CO2,LNG	50	0.6/0.8/1.6/2.2	GB/ASME	Vertical / horizontal
CFL-60	O2,N2,AR,CO2,LNG	60	0.6/0.8/1.6/2.2	GB/ASME	Vertical / horizontal
CFL-100	O2,N2,AR,CO2,LNG	100	0.6/0.8/1.6/2.2	GB/ASME	Vertical / horizontal
CFL-150	O2,N2,AR,CO2,LNG	150	0.6/0.8/1.6/2.2	GB/ASME	Vertical

Cryogenic liquid storage tank is used for LNG,LO2,LN2 LAR,LCO2,liquid ethylene etc.
Large capacity cryogenic storage tanks.
LNG gas station and Liquefied natural gas products.
Tank truck and storage tanks for LPG,liquid ammonia,propylene
Air separation plants and a variety of turbo expanders.
*About Us:
We are a professional manufacturer and supplier of Gas Cylinders Regulators, Oxygen Flowmeters, Medical Oxygen Flow Regulators, Medical Oxygen Kits, Oxygen Intake Devices, Gas O2 Valves, Medical Pin Index Valves, Medical Gas O2 Supply System Products, Gas O2 Cylinder Carts/Trolleys, Gas O2 Outlets, Ceiling Medical Pendants, Medical Gas Oxygen Respiratory Products and etc.
*Advantages We Have: -1).Original Manuacturer: Being a professional manufacturer, we have professional equipments for our manufactureing products, including Punch Machines, CNC Machines, and etc.;-2)Large Output capability: We have the capability to produce more than 50, 000PCS of Medical Oxygen Flowmeters each month;-3)Quality Control: With ISO13485 Quality Management system; All products have been tested before out of factory;
-4)Cost Advantages: We have cost advantage because our professional and scale economy;-5)Series: We have different series and models, for different standards in different countries;-6)Small order can be acceptable: M. O. Q. =50PCS;-7)Exporting experience: We have over 5 years' experience for exporting.
*NOTES: -a). Various types of seamless steel/aluminum gas cylinders,cylinder valves & flowmeter regulators can be optional; -b).We have many advantages of satisfying our potential customers' MIXED needs of different sizes of HP steel gas(O2/Helium/Argon/CO2/N2) cylinders raning from 0.2L~68L @15Mpa/20Mpa & ISO3807-1/2 Dissolved Acetylene Cylinders(2L~60L),as well as cylinder regulators & cylinder carts.
Anyway,should you have any intersts or some more info needed on our cylinder carts, medical/industrial gas cylinders & allied gas items(gas cylinder valves,gas cylinder regulators,medical hospital central oxygen system products),you are really welcome to enquire us anytime!
