XCMG Used Concrete Pump Machine 39m Hb39K Truck Mounted Concrete Pump Price

Product Description

Product Description
XCMG Used Concrete Pump Machine 39m Hb39K Truck Mounted Concrete Pump Price
1,XCMG V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.
2,It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system. Product Parameters

Description	Unit		Parameter value
Outline dimension	mm		10955×2500×3800
Overall weight	kg		26500
Chassis	Model		ZZ5307N4647C
	Max. speed	km/h	90
	Max. grade-ability	%	40
	Wheelbase	mm	4600+1350
	Tire		11.00R22.5
Engine	Model		WD615.96
	Max. power	kW	279
	Max. torque	N·m/(r/min)	1590/1100~1600
	Displacement	L	9.276
	Emission standard		Eruo III
Pumping system	Theoretical output	m³/h	130
	Concrete pumping pressure	MPa	8
	Theoretical pumping times	Time/min	24~27
	Delivery cylinder diameter ×stroke	mm	φ230×2000
	Max. diameter of pumping concrete	mm	40
	Filling height	mm	1580
	Concrete slump range	cm	8~23
Placing boom	Reach height	m	39.1
	Reach depth	m	26.8
	Slewingradius	m	35.1
	Slewing angle	°	±270
	Unfolding angle of the 1st section	°	90
	Unfolding angle of the 2nd section	°	180
	Unfolding angle of the 3rd section	°	180
	Unfolding angle of the 4th section	°	235
	Unfolding angle of the 5th section	°	210
Stabilizer span	Longitudinal span of stabilizer	mm	6625
	Transverse span of front stabilizer	mm	5951
	Transverse span of rear stabilizer	mm	7368
Others	Lubrication method		Automatic lubrication
	Control method		Manual/remote control
	Volume of water box	L	600

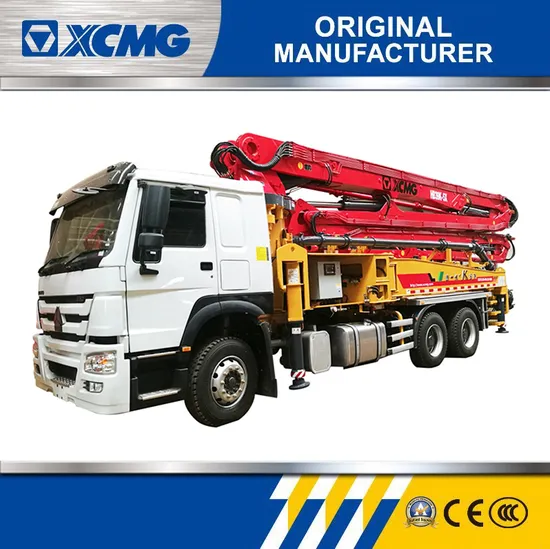

Product Picture
Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.

---
