| Model | Model Number | MV-SC3016M-06M-WBN | MV-SC3016C-06M-WBN |

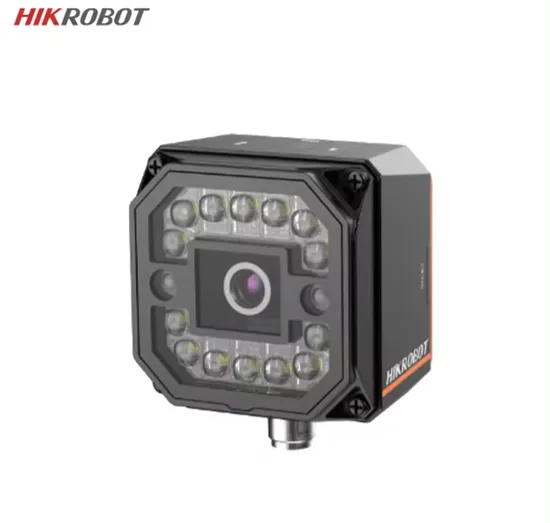

| Name | 6mm lens 1.6MP SC3000 vision sensor | ||
| Tools | Visual tools | Counting: spot count, edge count, pattern count, contour count. Defects: Abnormal detection. Yes No: No circles, no lines, no spots, no edges, no patterns, no contours Positioning: calibration, positioning, position correction. Logic: branch control, conditional judgment, logical judgment, combination judgment, character comparison, variable calculation. Measurement: Line angle, diameter measurement, brightness average, contrast measurement, width measurement, point line measurement, grayscale area, line angle, pitch measurement. Recognition: character recognition, code recognition, registration classification, registration target detection. Deep learning: object detection and classification. | |
| Solution capability | Support solution import/export, up to 32 solutions and 40 modules can be stored | ||
| Communication protocols | RS-232,TCP,UDP,FTP,PROFINET,Modbus,EtherNet/IP | ||
| Camera | Sensor type | CMOS, global shutter | |
| Image element size | 3.45 µm × 3.45 µm | ||
| Target surface size | 1/2.9" | ||
| Resolution | 1408 × 1024 | ||
| Maximum acquisition frame rate | 60 fps | ||
| Dynamic range | 71.4 dB | ||
| Signal-to-noise ratio | 41 dB | ||
| Gain | 0~15 dB | ||
| Exposure time | 16 μs~1 sec | ||
| Pixel format | Mono 8 | ||
| Black and white/color | Mono | Color | |
| Electrical Characteristics | Data interface | Fast Ethernet(100Mbit/s) | |
| Digital I/O | 17-pin M12 interface provides power supply, Ethernet, digital IO, serial functions: 2 input signals (Line0/1), 3 output signals (Line5/6/7), 3 configurable inputs and outputs (Line2/3/4), 1 external button input (BUTTON) NPN or PNP type of output signal can be matched | ||
| Power supply | 24 VDC | ||
| Typical power consumption | 48 W@24 VDC | ||
| Structure | Lens interface | M12-mount, mechanical focus | |
| Focal length | 6 mm | ||
| Lens hood | Transparent lens hood, optional semi-polarized lens hood or fully polarized lens hood | ||
| Light source | 14 LEDs: white (default factory) / red / blue / near infrared | ||
| Indicator light | Power indicator PWR, network indicator LNK, status indicator STS, result display indicator OK/NGPower indicator PWR, network indicator LNK, status indicator STS, result display indicator OK/NG | ||
| Dimensions | 65.2 mm × 65.2 mm × 47 mm | ||
| Weight | approx 280 g | ||
| IP protection level | IP67 (with properly installed lenses and cables) | ||
| Temperature | working temperature 0~50ºC, storage temperature -30~70ºC | ||
| Humidity | 20%~95%RH non-condensing | ||
| General Specifications | Software | SCMVS | |
| Certification | CE, FCC, KC | ||
