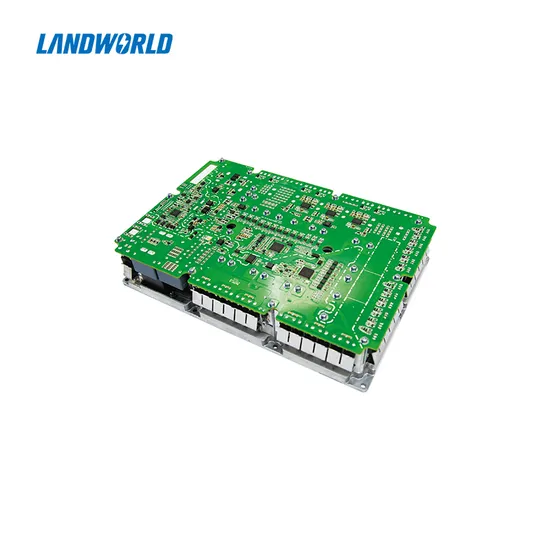

Landworld 11kw Charging Station on Board Charger Easy Integration

US$2,000.00-2,500.00 5 Pieces (MOQ)

Basic Info.

Model NO.
LWC11K-380S640-M
Usage
EV Onboard Charger
Color
Gray
Specification
300x200x60mm
Trademark
LANDWORLD
Origin
China

Packaging & Delivery

Package Size
40.00cm * 40.00cm * 40.00cm
Package Gross Weight
10.500kg

Product Description


Product Features: Product dimension: 300x200x60mm Product weight: ≤6.5KG Cooling method: by aluminum Support on-line upgrade and fault diagnosis High power density, modular design, easy for modular integration Full digital SW design, redundant protection function design Multi 6.6KW OBC can be paralleled; (2*6.6Kw , 3*6.6KW, 4*6.6KW OBC) Main Technical Parameters
Items Technical Spec. Remarks
Operation temperature -40-85ºC By aluminum
Nominal output power 11kW 6.6kW @ Single phase input
Input voltage Three phase: 304-456Vac (Line to line, three phase four lines) Single phase: 175-265VAC
Nominal Vout 450-750VDC
Nominal output Current 20A Single phase input: 12A
VCC power supply 9-32Vdc VCC
Eff. ≥94% @Nominal voltage
Voltage accuracy ±1%
Current accuracy ±3%
Low voltage
Wake up
12/24Vdc&200mAmax
(WAKE_UP signal)
Wake up BMS/VCU
Wake
up method
CAN/AC/CC/CP Support booking charging
CAN communication CAN-BUS
Static current ≤2mA Current consumption at sleep mode or standby status
EMC standard GB/T18387-2008, EN 55022 EMC standard
Protection features Input OVP/UVP, output OVP/UVP,OTP, OCP, output short-circuit protection, CAN communication breakdown protection
