Fully Automatic Paper Cup Making Single PE Paper Cup Machine

Product Description

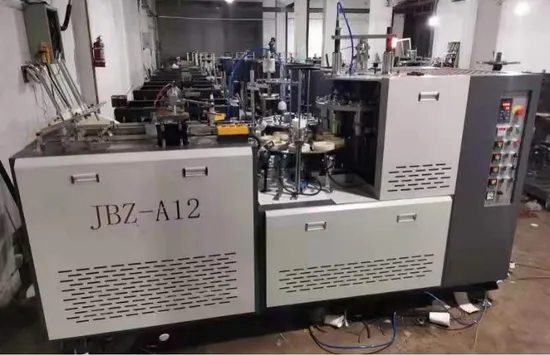

JBZ-A12 Model Paper Cup Making Machine Product Description
JBZ-A12 type single PE coated paper cup machine is the automatic environmental machine with multi-running positions. This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom-punching, heating, rolling, rimming, rounding and tripping. It is an idea equipment of producing drinking cup, ice-cream cup and other food cone-shaping containers. This type paper cup machine mainly used to making one side PE coated paper cups from 3 oz to 12 oz or above 12oz.
Automatic control adopts optically controlled non-contact switch,
Micro-controlled transducer,
Step-less speed adjustment,
Paper Cup-fan-wall body sealed by heater,
Paper Cup bottom sealed by heater.
Full automatic,
Easy changing molds produce different sizes paper cups,
Easy operating by operator (one operator is enough),
Easy maintenance with minimum cost,
Cheap operating cost and low investment,
Amelioration: Air compressor aren't required for this type paper cup machine.
Product Parameters

Suitable size:	3oz-12oz and other special size
Raw material:	Single side(one side) PE(polyethylene) film coated paper
Suitable paper weight	150-320GSM (Recommend 170--280 GSM)
Ration Productivity:	40--55/min
Total power :	5KW
Net Weight:	1600kg
Gross Weight:	1900kgs
Power:	220V 380V
Packing size	2800*1320*1800
