2. Only 12.5kg Professional Audio Amplifier
3. Proved Touring FB-13K Amplifier

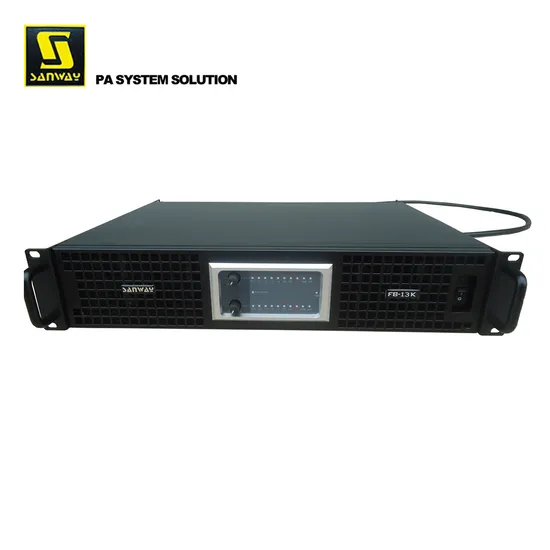

| FB-13K Pro Amplifier |
| ITEM | FB-13K |
| Output Power | 20-20kHz, 1W with 1 KHz |
| 8ΩStereo Power(RMS) | 2350WX2 |
| 4ΩStereo Power(RMS) | 4400WX2 |
| 2ΩStereo Power(RMS) | 6500WX2 |
| 8ΩBridged Power(RMS) | 8800W |
| 4ΩBridged Power(RMS) | 13000W |
| Frequency Response(+o/-0.3dB, 1W/8Ω) | 20 Hz - 34 kHz |
| THD 20 Hz - 20 kHz for 1 W | <0.1% |
| Signal-to-Noise Ratio | >112 DB |
| Channel separation (Crosstalk) at 1 kHz | >70 dB |
| Input Connectors (per channel) | 3-pin XLR, electronically balanced |
| Output Connectors (per channel) | Binding Posts 2-pole |
| Class | TD |
| TourClass Protection | short circuit, DC voltage, turn-on/off transient, current, inrush |
| Operating voltage | 130-265 V / 65-135 V selectable |
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
| Input impedance | 20 Kohms |
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -in to 0 dB |
| Dimensions (W×H×D) | 483×88×396mm |
| Packing dimension | 575×140×550mm |
| Net weight(kg) | 12 |
| Gross weight(kg) | 18 |
