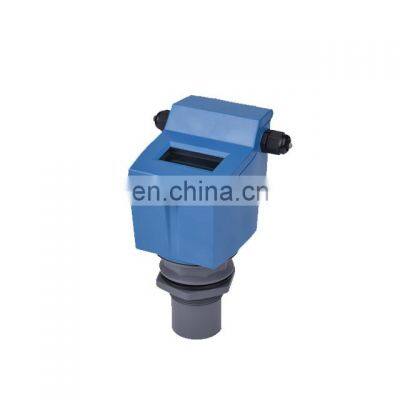

Product DescriptionUltrasonic level transmitterUTG21-PY includes several proprietary technologies, is safe and clean, with high precision and long service life, stable and reliable, and convenient to install and maintain, and is applicable to various fields of acid, alkali, salt, anticorrosion, and high temperature. The meter’s all input and output lines must be with such protection functions as lightning protection and short circuit prevention.Model NumberUTG21-PY Ultrasonic level transmitterRange0~15mBlind area0.25m~0.5mRanging accuracy0.3% (Standard condition)Ranging resolution1mmPressureLess than four atmospheric pressureDisplayWith LCD to display liquid levelsAnalog output4~20mADigital outputRS485, Agreement Modbus or customization agreement (four-wire)Power supplyDC24V or AC220VProtection gradeIP65InstallationNut or flangeDetailed ImagesFunction of Ultrasonic Level Meter1. For circuit design, high-quality power modules are selected to be as power supply parts and highly stable and reliably imported devices are used as components of the meter. It can fully replace imported foreign meters of the same type.2. Patent sonic-wave intelligent technology software can make intelligentized echo analysis. It needs neither debugging norother special steps. This technology has functions of dynamic thinking and dynamic analysis.3. Our sonic-wave intelligent patent technology greatly improves the meter’s precision, and the precision of liquid level is up to 0.3%, which is enough to resist various interference waves. 4. The meter is a non-contact one and does not directly contact liquid, so the fault rate is low. The meter can be installed in Several different ways, and the user can make meter calibration according to the Manual. 5. The meter’s all input and output lines must be with such protection functions as lightning protection and short circuit prevention. Related ProductContact usTrade terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:commercial at Whataspp：+8618842866177TEL:86-411-39685079web:/
>>
