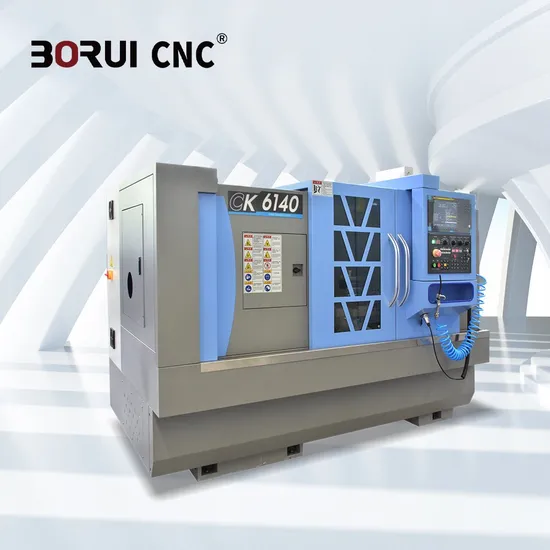

CNC Metal Lathe Machine Ck6140 Flat Bed CNC Lathe Machine

Product Description

CNC Metal Lathe Machine Ck6140 Flat Bed CNC Lathe Machine
Product Description
CK series CNC Lathe machine is and economical, practical type machine tools with good quality.The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring, reaming of axis and disk workpiece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirement
The main feature :
1) Machine are made of high intensional cast iron with good aseismatic and high rigidity
2)Spindle of heavy-cutting structure to achieve high rigidity and high precision
3)With electrical turret,it can achieve high positioning ,fast speed for toolchange and high performance
4)With feeding motor and leadscrwe for type of direct connection,it can assure the machining precision and positioning accuracy
5)Tailstock can be adopted by hydraulic driving to make sleee travel bigger and easy operation
6)Complete closed cover can protect the iron scraps splashing out.

Product Parameters
Product main technical Specifications:

SPECIFICATIONS	CK6136D	CK6140D	CK6136B	CK6140B
Max .Swing over bed	360mm	400mm	360mm	400mm
Max. swing over carriage	200mm	240mm	200mm	240mm
Max. workpiece length	312mm		312mm
Max. cutting length	312mm		600/850mm
Bed width	312mm	312mm	312mm	312mm
Section of turning tool	20×20mm	20×20mm	20×20mm	20×20mm
Thru-hole of spindle	52mm	52mm	52mm	52mm
Spindle speeds	Stepless: 100-1600rpm 2-gear speed change 25-1600rpm		2-gear speed change 100-3000rpm (I. 100-1047rpm, II. 290-3000rpm)
Spindle end	ISO (GB) C6	ISO (GB) C6	ISO (GB) C6	ISO (GB) C6
Spindle taper	MT6	MT6	MT6	MT6
Feed speed X/Z	X: 3m/min Z: 4m/min		X: 3m/min Z: 4m/min
Rapid feed speed X/Z	X: 4m/min Z: 6m/min		X: 4m/min Z: 6m/min
Tailstock spindle travel	100mm	100mm	100mm	100mm
Tailstock spindle diameter	60mm	60mm	60mm	60mm
Tailstock center sleeve taper	MT4	MT4	MT4	MT4
Repeatability error	0.01mm	0.01mm	0.01mm	0.01mm
Spindle motor	5.5kw	5.5kw	5.5kw	5.5kw
Packing size (L×W×H) (750mm)	210×135×170cm	210×135×170cm	210×135×170cm	210×135×170cm
Packing size (L×W×H) (1000mm)	230×135×170cm	230×135×170cm	230×135×170cm	230×135×170cm
Weight(kg) (750mm)	1300	1400	1300	1400
Weight(kg) (100mm)	1500	1600	1500	1600

Standard Accessories: 1. Frequency Spindle
2. 250mm 3-jaw Manual Chuck
3. 4-station turret
4. Manual Tailstock
5. Full-splash Guard
6. Stepless speed change
Optional Accessories: 1. Hydraulic Solid Chuck
2. Hydraulic Hollow Chuck
3. Hydraulic tailstock
4. 6-station turret
5. Center Rest and follow rest
6. 4-Jaw chuck
CNC Controller system: GSK; FANUC; Siemens; KND
Details Display
Packaging & Shipping
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
