Premium Italian Hualong Italy System 4+1 Axis CNC Bridge Saw Stone Cutting Machine for Marble and Granite

Product Description

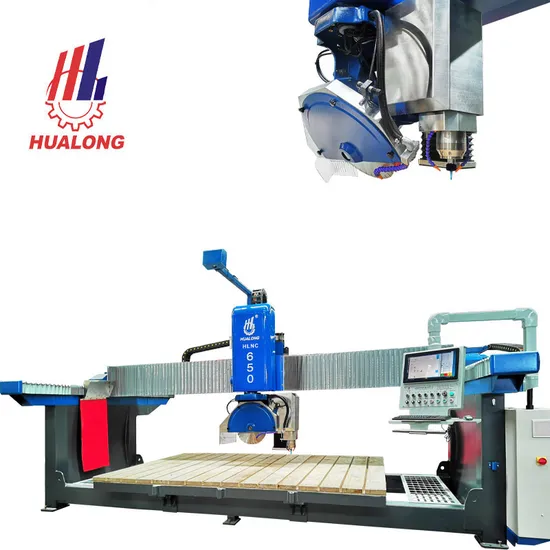

CNC Stone Bridge Saw HLNC-650+ is a numerically controlled fully interpolated 4 axis bridge saw with tilting head and tilting table to carry out any type of machining, cutting (straight or curved, vertical or inclined), 2D profiling, milling and 2D engraving operations, on slabs and stone blocks.
This machine can work one shot or step by step to shape marble, granite, composite stone and ceramic pieces.
This machine can be very customized, it is the perfect solution for shops with high productivity of:
* kitchen countertops * vanity tops * wall panels for interiors and exteriors * flooring * doorsteps, staircases and thresholds * street furniture
* bas-reliefs
Main Features
1) 4 axis lnterpolation control with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen. 3) Blade can rotate 0°-360° and tilt 45° for any direction's cutting. 4) Working platform can tilt 85 degrees, easy for slabs loading.
5) Manual cuts available for simple machining.
6) Nesting manual / automatic to optimize slab surface usage

7) Optional - Engraving module with electro-spindle exellent for milling & 2D carving.
8) Optional - Vacumm manipulator for workpieces handling.
9) Optional - Photo slab for nesting and avoiding defects. 10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
11) Optional - Slab thickness probe
12) Optional - Tool measuring system

Technical Data
Modle No.		HLNC-400+	HLNC-650+
Diameter of saw blade	mm	ø400	ø650
Blade mitering	°	0-45	0-45
Dimension of working platform	mm	3500x2100	3500x2100
Max. cutting length	mm	3500	3500
Max. cutting thickness	mm	70	200
Max. lifting stroke	mm	250	300
Max. lifting weight by sunction cups	kg	100 x 2	100
Power of main motor	kw	15	18.8
Power of electric spindle motor	kw	5.5	5.5
Power of cutter frame reciproctating motor	kw	2	2
Power of crossbeam shifting motor	kw	1.1	1.1
Power of hydraulic station motor	kw	2.2	2.2
Power of lifting motor	kw	0.85	0.85
Gross power	kw	28.7	32.5
Water consumption	m3/h	2	2
Gross weight	kg	4500	6000
Dimensions (L x W x H)	mm	5800x3380x2770	6200x3380x3000

Application Fileds:
Cnc machines can be customized according to the Customer's needs about production and space available into his factory.
Control system -- CNC
Brand: ESA Original: Italy Top of the line CNC system with touch screen for easy setting and automatic processing. It can make a complicated machining job easy, perfect and high efficient.
Software - Pegasus CAD/CAM
Brand: Pegasus Original: Italy * Easy to Use -- Very user-friendly, it does not require any advanced computer skill. * Reliable -- Frequent updates and high-quality support. * Powerful -- Different modules and tools for plenty of technologies and machinings.
Slab Image Capture (Optional)
The application allows to acquire and process the slab photo, by correcting the lens distortion and rectifying it. Through the acquired image, the shapes can be arranged on the slab avoiding material imperfections while identifying the nervures that need to be machined; it is also possible to qualify the slab edge geometrically.
Digital Servomotor
Brand: ESA
Original: Italy
A permanent magnet brushless servomotor with intergrated drives, designed to achieve total digital integration with Esa's CNCs,
creates a reliable controlling power for X, Y, Z and C axises
Sole Engraving Module (Optional)
* Type: electro spindle * Rotating speed: 0-24000 rpm * Power: 5.5 kw Comparing with machnical spindle, the rotating speed of this electric spindle is super higher. It makes engraving fine and faster, or make curve cutting, corner cutting by milling much faster too.
Vacuum Manipulator
Spindle vacuum cups for handling cut pieces, making it possilble to minimise material wastage and streamline cutting operation.
Double Manipulators are optional.
Blade Presetting Unit (optional)
Automatically measuring blade diameter and diamond tool
Slab Thickness Detector (optional)
Origin: China
System to automatically detect slab thickness in order to start the cut at the optimal height for reduced machining cycle times.
Rubber Platform (Optional)
Waterproof and no deformation. The rubber faced work table increases grip of the slab during the machining operations.
Safeguard Door (Optional)
Safe light curtain is recommended for preventing work-related injuries.
Galvanization (Optional)
Galvanizing can prevent the immersion of air, water and other corrosive media to steel, improve the corrosion resistance of the machine, enhance mechanical strength, and extend the service life.
Electric Cabinet
Branded electric companets such ESA, Schneider, Sanch are adopted to ensure stable performance.
Linear Guide
Brand: Hiwin Original: Taiwan, China Famous products, top quality used on crossbeam and carling for high precision of cutting and long lifespan.
Q: Are you manufacturer ?
A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service.
Q: Can I get a machine according to my own requirements?
A: Sure. Welcome OEM and ODM orders.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well.
Q: What's your MOQ and delivery?
A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you.
Q: How is your after sales service?
A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance.
Q: If my machine is broken. Can you repair it for me?
A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.

---
