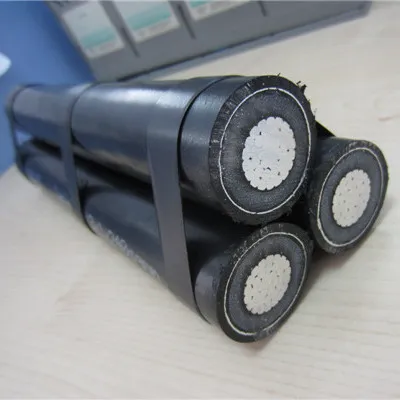

12-24kv Medium Voltage Underground Cable NFC 33-226

Product Description

Detail

Construction characteristics
Conductor flexibility	Stranded class 2
Conductor shape	Circular stranded (RM)
Material of the inner semi-conductor	Extruded
Insulation	XLPE (chemical)
Material of the external semi-conductor	Extruded strippable grooved elastomer
Material used for longitudinal water tightness	Swelling powder
Screen	Longitudinal aluminium tape
Mechanical characteristics
Cable flexibility	Rigid

Description
International Designation : NF C 33 226
MV cables NF C 33-226
Description
Usage
NF C 33-226 cables are the new generation of cables for public power distribution network 12/20 kV. They are AD8 following NF C 13-200 with a water pressure < 0,2 bar. Sheath is anti-termite resistant.
Design
The cable is made of 1 or 3 bunched cores.
Aluminium screen is made to ground short-circuit currents of EdF network, up to 1000 A for 1 s. for underground networks.
Options
NF C 33-226 cables can be manufactured with the following options:
Copper conductor
Other voltage
Other section
Grounding conductor
Thicker aluminium screen
Bunch
Re-enforced burying resistance (EDR) is ensured with an extruded polyethylene protection.
Our company
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
Our certificate
FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
