1000 Liter Floor Cleaner Mixing Machine, Liquid Mixing Machine

US$5,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Application Area
Daily Chemical
Certification
CE, ISO, SGS
Condition
New
Mixing Drum Shape
Conical
Stirring Type
Diving
Working
Diffusion Mixer
Capacity(Liter)
500-5000 Mixing Machine
Power Supply
Customer Design
Usage
Dish Wash, Cloth Wash, and Floor Cleaning Fluid, etc
Mixer Type
Agitator
Layout Type
Verticle
Operating type
Continuous Operating
Transport Package
Wooden Case
Specification
customer design
Trademark
JINZONG MACHINE
Origin
China
HS Code
8479820090
Production Capacity
50 Sets/Month

Product Description

Jinzong can provide all kinds of chemical products machines as following: > chemical mixing tank > cosmetic mixing tank > Pharmacy mixing tank > Skin Cleaning products making machine
> toilet soap mixing making machine
> face wash vacuum emulsifying machine
> cleansing cream making machine
> cleansing milk making machine
> cleansing lotion making machine
> Soap and detergent manufacturing machines
> Soap and detergent mixing machines
> Laundry cleaning products making machine
> Laundry liquid making machine
> Dishwashing detergents making machine
> Dishwashing Cleaning Liquid mixing making machine
> Household cleaning products making machine
> Floor cleaners detergent making machine
> Glass cleaners detergent making machine
> wood cleaners detergent making machine
> Toilet bowl cleaners detergent making machine
> cosmetics ointment vacuum emulsifiers
> vacuum homogenizer mixer cream emulsion machine
> tomato sauce mayannaise cream vacuum blending tank mixing equipment

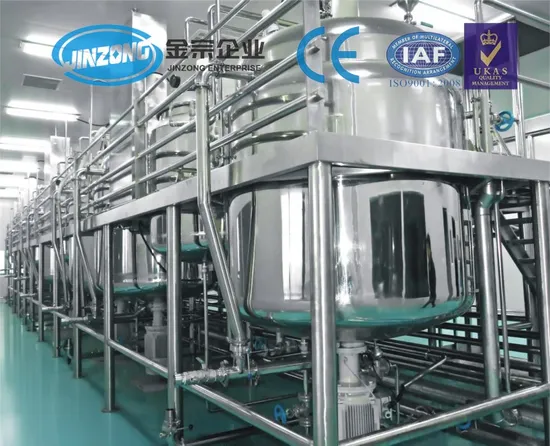

> PLC control automatic vacuum cream&ointment emulsifying machine Cosmetic Machine JY/S series Liquid Detergent Mixing Tank is high-efficiency liquid detergent vessel specially designed for mass production. The vessel is equipped with specialized AES self-absorption dissolving decollators, only by opening the valve, plenty of AES materials can be fed within several minutes in the production. AES is dispersed evenly during feeding so it can fully mixed and dissolved in the water, without the frothy phenomenon occurred during normal manual feeding. This equipment can greatly reduce working time and labor intensity, and is suitable for all sorts of cold and hot feeding process.
This series of machines have the mixing blades of many structural shapes for your option, and the vessel body has many shapes such as normal temperature, heating, normal pressure and vacuum, the machine has the advantages of high productivity, low power consumption, strong adaptability and broad usages, it is the ideal equipment to produce liquid detergent products.

Technical Parameter
Specifications
Working
volume(L)
the actual volume(L)

Cover power Mpa(for steam)
Figure measure
L×W×H(mm)
Mixing power(KW)
100
100
125
≤0.3Mpa
1700× 1200× 1850
2.2
200
200
265
≤0.3Mpa
1800× 1350× 2000
2.2
300
300
400
≤0.3Mpa
2000× 1400× 2100
3
500
500
625
≤0.3Mpa
2200× 1400× 2500
3
1000
1000
1250
≤0.3Mpa
2500× 1700× 2500
4
1500
1500
1750
≤0.3Mpa
2500× 1850× 2500
5.5
2000
2000
2600
≤0.3Mpa
2750× 1910× 3100
5.5
3000
3000
3600
≤0.3Mpa
3000× 2100× 3500
7.5
4000
4000
4800
≤0.3Mpa
3000× 2300× 3600
8.5
5000
5000
5800
≤0.3Mpa
3200× 2400× 3950
11
10000
10000
custom made
≤0.3Mpa
custom made
custom made
20000 20000 custom made ≤0.3Mpa custom made custom made
30000 30000 custom made ≤0.3Mpa custom made custom made
Note: In case of inconformity of the data in the table due to technical improvement or customization, the real object shall prevail.
