| MODEL | Description | EXW RMB | Pictures |
| Overall performance | Unit | Value | 1 unit/40'HC |

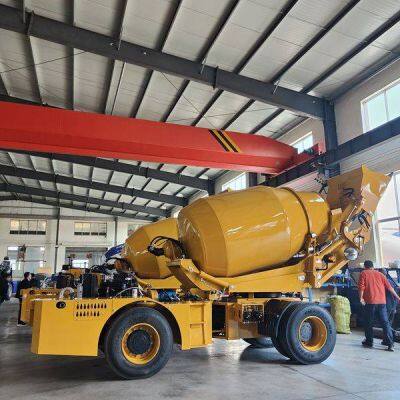

| H30 |
| Engine Type |
| Yuchai 4105 Turbocharging | 148,000.00 | |
| Engine power(KW) | KW | 85 |
| Drum Capacity(m³) | m³ | 5.5 |
| Valid output(m³) | m³ | 3.5 |
| Overall dimension Length*Width*Height(mm) | mm | 6150*2700*3350 |
| Axle base | mm | 2450 |
| Front wheel base | mm | 1680 |
| Rear wheel base | mm | 1680 |
| Dumping height | mm | 1400 |
| Minimum ground clearance(mm) | mm | 290 |
| Total weight(KGS) | KGS | 8000 |
| Fuel consumption (Theoretical)L/H | L/H | 8.0-10.0 |
| Maximum drive speed | KM/H | 25 |
| Tank rotation speed | Turn/minute | 18 |
| Tank rotation angle | ° | 270 |
| Drive Bridge |
| big hub reductor |
| Gear box |
| 280 |
| Tire Dimensions (Front) |
| 12R22.5(Double Tire)16/70-20(Single Tire) |
| Tire Dimensions (Rear) |
| 12R22.5or16/70-20 |
| Braking distance | mm | 1000 |
| Engine oil capacity | L | 13 |
| Hydraulic oil capacity | L | 120 |
| Hydraulic oil type | L | No. 46 efficient wearable |
| Fuel tank | L | 120 |
| Water tank | L | 750 |
| Small pump displacement | L/MINUTE | 150 |
| Big pump displacement | L/MINUTE | 150 |
| Radius of turning circle |
| 6 |
| Bucket capacity | m³ | 0.6 |
| Transmission oil type/capacity | L | No. 8 transmission oil/50 |
| Axle gear oil type/capacity | L | No. 18 double curve bight/3.5 |
| Hub reduction gear oil type/capacity |
| No. 18 double curve bight/1.8 |
| Double tire pressure | Bar | 10 |
| Single tire pressure | Bar | 6 |
| Tank pressure | Bar | 4.0-8.0 |
| This price includes high-pressure car wash pumps; |
|
|
|
|
|
|
| Air conditioner: usd450.00; Cement hopper: usd200.00 |
|
|
|
|
|
|
