16-32mm Four Cavity PVC UPVC Conduit Electric Pipe Extruder Making Extrusion Machine Production Line

Product Description

Product Description
New technology four Cavity plastic PVC electrical conduit pipe extrusion line
4 Outlet / 4 Cavity PVC pipe extrusion line is a high efficient and output machine, which can produce Four pcs PVC pipes simultaneously. The small size PVC pipe is widely used to electric conduit, water discharge and so on. Four outlet PVC pipe extrusion line is a high efficient and output machine.
Main Featrures
1. Extruder controlled by Digital display control instrument, or PLC control system with HMI touch screen control panel,
2. Vertical type integrated gearbox, with high torque, accuracy and durable performance.
3. Bimetallic screw and barrel; Screw inner temperature controlled by thermo oil pump system; Equipped with degassing zone; Optimized double screw material feeding system for stable production of PVC powder.
4. High production capacity: Under the premise of ensuring product quality, the four outlet PVC pipe extrusion line can reach about 12000kg per 24 hours.
5. Small water and air consumption: WONPLUS optimized cooling water channel and air circuit make the water and air consumption reduce at least 25% than traditional type.
6. Low noise pollution: WONPLUS machine use Dust free cutter, almost none sound while working.
7. Low dust pollution: The traditional saw cutter makes serious dust pollution while working, and too much material wasted after cutting. But WONPLUS dust free cutter use Alloy knife, almost none dust while working.
Detailed Photos

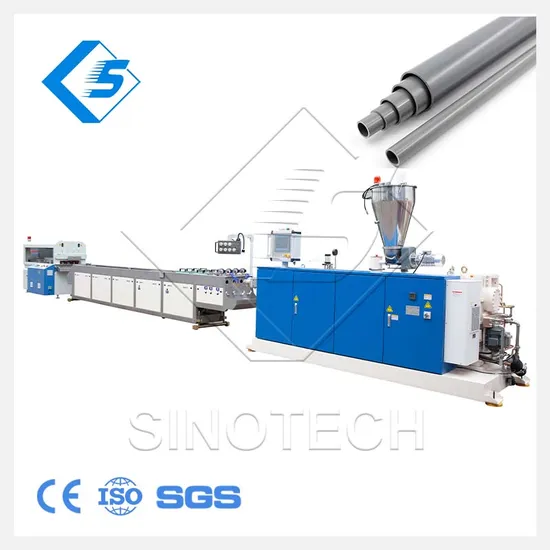

This PVC Pipe Extrusion Line is composed conical twin-screw extruder, vacuum calibration tank, haul off, cutter and stake etc. The extruder and haul off adopt imported AC frequency control device, vacuum pump and haul off motors adopt high-quality products. The haul off methods are two-claw, three -claw, four-claw, and six-claw etc. You may choose saw blade cutting type or planetary cutting type. It is additionlly attached with length counter and intensifying device. This line is of reliable performance and high production effeciency.
Conical Twin Screw Extruder Four Out PVC Pipe Mould
Cooling Tank Vacuum Calibration Tank
Caterpill ar Type Hauler Dust-free Cutter
Product Parameters

Item	Unit
L/D		65/132
Rotate speed	r/min	1-38
Nitriding depth	mm	0.6-0.7
Heating power	kw	26
Temperature range	ºC	50-300
Cooling mode		wind cooling
Nitriding depth	mm	0.6-0.7
Main drive motor rotate speed	r/min	100-1500
Motor power	kw	1.5
Vacuum degree	Mpa	0-0.08
Rotational speed of screw	r/min	0.5~30
Motor power	kw	0.75
Speed adjusting mode of motor		By inverter
Pipe diameters	mm	20, 25 & 32
Length of the tank	mm	6000
Vacuum pump	kw	4×4pcs
Water pump	kw	4×1pc
Front-back movement with guide rail, move distance,	mm	600
motor power	kw	0.75
Effective length of the hauling belt	mm	800
Motor power of the haul off	kw	1.5×4pcs
Hauling speed	m/min	0-8
Speed control		By inverter
Cutting motor power	kw	1.5*4pcs
Working central height	mm	1000±50
Production Capacity	kg/h	200-250
Figuration measurement	mm	4250×1580×2550
Total weight	kg	4000

Company Profile

FAQ
Q: Can we visit your factory?Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.Q: How can we get the exact price of plastic machine?Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.Q: Do you provide any spare parts with machine?Yes, we offer all necessary spare parts before shipment.(contact us for packing list )Q: How about your after-sale service ?We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.Q: What is the lead time?For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)Q: What is the warranty period for your machine ?12 months warranty for components and technical support .Q: Do you provide custom machines?Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.Q: How can we install the machine when it arrives?We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.Q: What's the advantage of SINOTECH?We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time
