Dakiou High Speed Paper Cutting Machine for Cups and Boxs

Product Description

New Type PY-950/1200/1300

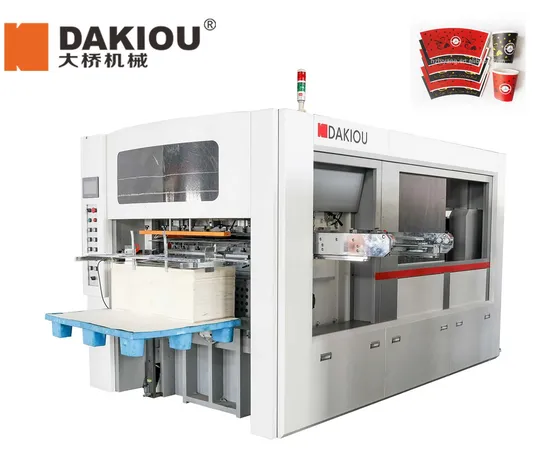

AUTOMATIC HIGH SPEED ROLL DIE-CUTTING&CREASING MACHINE
Product Description
PY-950/1200 is widely used in printing,packing and paper cup industries.It's suitable for die cutting and creasing all kinds of paper cup(bowl),cigarette case,medicine paper box,envelope,paper bowl,gift bags and various paper r-plastic products(Also can put various sizes of corrugated paper).Main electrical components and parts we choose the international famous brands.The machine is adopting worm and worm wheel structure,the refore,producing products with high quality,low consumption and high safety.It is automatic feeding,color code tracing and precision die cutting.Pneumatic locking knife makes operation and changing mould more easy and convenience.
Technical Data

Model:	PY-950	PY1200
Precision:	± 0.10mm
Capacity:	150-200 times/min
Max Feeding Width:	970mm	1220mm
Suitable Material:	120-600g/m2 white cardboard, PE coated paepr, Kraft paper, etc.
Total Power:	14KW
Total Weight:	7000KGS	10000KGS
Max Cutting Size:	950 x540mm (standard) 950 x640mm(customized)	1200x640mm(standard) 1200x750mm(customized)
Max Pressure:	350T	350T
Overall Dimension:	4200 x 2100 x 1850mm	4200X2300X1850MM
Working Air Source:	Air pressure0.5-0.7Mpa; Working air: 0.3m3/min

Machine detail

---
