Product Description

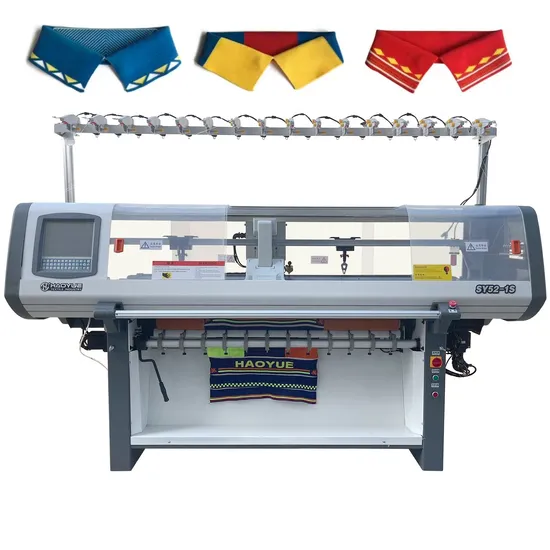

NINGBO HAOYUE brand Collar & Sweater knitting machine Can make high definition collar, sweater, carpet, muslim cap, beanie, hat, scarf, blanket, baby clothes, cardigan, Jerseys, school uniform, gloves, rib, cuff, pocket, trousers and shawl.
| Gauge | 12G,14G,16G |
| Knitting width | 52,60,80,100,120 Inch |
| Knitting system | Single system Double carriage 1+1 system(optional)
|
| Knitting speed | Controlled by servo-motor with 32 sections optional, max speed reach 1.6m/s. |
| Knitting function | Knit, miss, tuck, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns. |
| Racking | Controlled by servo-motor racking within 2 inches and with fine adjusting function. |
| Stitch density | Controlled by stepping motor, 32 section stitch select-able adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled. |
| Dynamic stitch | Using high speed stepping motor, multi-stitch function can be achieved in one line. |
| Needle selection | Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector.which can be installed or removed simply from the carriage and maintained easily. |
| Transfer system | Combined design, single or double cam system all can transfer together or separately. Also one cam do transfer , another cam system for knitting, which will achieve high production. |
| Quickly turning | Intelligent switching braiding system improves machine weaving efficiency. |
| Take-down system | Machine With high roller and sub roller, Infrared alarm,Computer programs instruction, stepper motor control,32-stagetension selection with an adjustable range between0-100. |
| Color-changing system | 2×3 yarn feeders on each side of 3 guide rails, shift able on any needle position. |
| Yarn feeder device | Accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality. |
| Protection system | The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device. |
| Control system | 1. LCD industrial display, Can display various parameters, which can be adjustable during operation.
2. USB memory interface,System memory 2G.
3. Free design system is visual and easy to understand and software upgrade free of charge.
4. Support multi-language operation as Chinese and English, Spanish, Russian etc.
|
| Network function | Has network interface,enable remote-monitoring via network,and connecting with ERP system. |
| Power supply | Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock stop. |
| Non waste yarn Comb device | Non waste yarn Comb device(Optional) |
| Volume and weight | 2500*900*1700mm,700kgs(52inch)
3800*900*1700mm,950kgs(80inch double carriages) |
NINGBO HAOYUE TEXTILE TECH CO.,TLD.
We wish you complete success in your business development.
Welcome to visit US.
