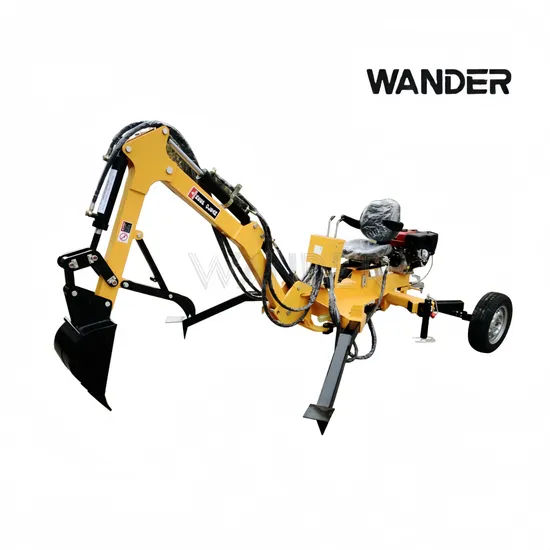

15HP EPA Towable Backhoe Excavator with Shovel/Ditch Finger/Log Thumb for Sale

US$1,799.00
1-3 UNIT
US$1,749.00
4-11 UNIT
US$1,699.00
12-38 UNIT
US$1,599.00
39+ UNIT

Basic Info.

Model NO.
ATV-9
Type
Wheel Excavator
Usage
Mining Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Gasoline Engine
Bucket Capacity
0.036cbm
Size
Small-Scale
Certification
CE, ISO9001: 2000, SGS
Condition
New
Model No.
ATV-9
Engine
9/13/15HP Gasoline Engine
Structure Weigght
550kgs
Max Digging Deep
2400mm
Max Digging Radius
2800mm
Max Unloading Heitht
1200mm
Stabilizer Width
1800mm
Swing Angle for Boom
140 Degree
Bucket Turnning
160 Degree
Bucket Cubage
0.036cbm
Bucket Width
220mm/330mm/400mm/500mm/600mm
Pump
Double Speed Gear Pump
Color
Red/Blue/Green/Orange/as Your Request
Coupler Size
2`` Ball for Easy Towing
Dimensions(Lxwxh)
1800mmx1100mmx900mm
Transport Package
Iron Frame Packing or Wooden Packing
Specification
1800mmx1100mmx900mm
Trademark
Wander
Origin
Shandong China
Production Capacity
5000 Units/Year

Packaging & Delivery

Package Size
180.00cm * 110.00cm * 90.00cm
Package Gross Weight
550.000kg

Product Description

Product Description
Towable mini Digger can be towable by ATV,UTV eg,easy tranport,
which is use for small digging and construction work.
It is the ideal tool for all your landscaping,drainage,and material handing
needs whether it is at home in the city,the countryside, or in the woods.
Effortlessly dig trenches,plant trees,landscape the yard,lift heavy objects,
build a retaining wall,demolish a shed and tackle other labour-intensive
jobs with this towable excavator.


Product Parameters

Technical date of ATV Towable Backhoe Excavator
MODEL ATV-9
Power 9/10/13/14/15HP Gasoline engine
Structure Weight 550kgs
Max Digging Deep 2400mm
Max digging Radius 2800mm
Max Digging Height 2500mm
Max Unloading Height 1200mm
Stabilier Width 1800mm
Swing Angle For Boom 140°
Bucket Turnning Angle 160°
Bucket Cubage 0.036m³
Load capacity without counterweight 180kg
Load capacity with counter weight 326kg
Bucket Width 300mm,optional:200mm/400mm/600mm
Coupler Size 2``Ball for Easy Towing
Packing dimensions(LxWxH) 1800mmx1100mmx900mm
Pump Double Speed Gear Pump
Container Loading 12pcs/20FT,39pcs/40HQ

Options for Additional Configuration:
1) Bucket size can be chosen, 200mm, 300mm, 400mm, 500mm, 600mm wide extra buckets.
2)V type bucket,thumb,ditching finger also be availible.
3)Gasoline engine brand like Kohler, Honda, B&S etc.
4)Different engine opotion,9-15hp gasoline or diesel engine.
5) Tyre can be changed as your request.
6)Can be changed as your color

Packaging & Shipping

Packaging & Delivery
Selling Units: Single item
Single package size: 180X110X90 cm
Single gross weight: 550.0 kg
Package Type:
Iron frame packing or Wooden packing.
For one sample 1800mmx1100mmx900mm iron frame package with film dustcover.
For container then 3pcs in one 2200mmx900mmx2550mm iron frame package with film dustcover.
