Kaishuo Waterjet Loom Machinery Ksj-501 High Speed Water Jet Loom Electronic/Mechanial Feeder Optical Feeler for Three/Five/Seven Interweave Net

Product Description

Product Description

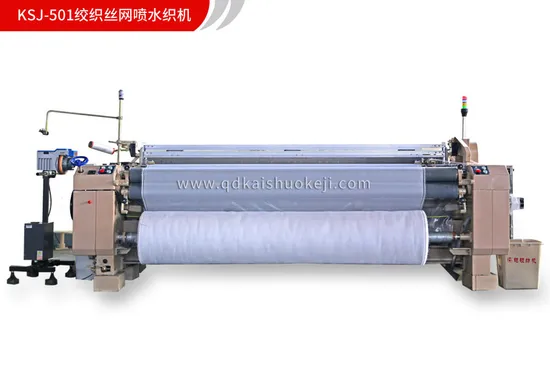

KSJ-501 twisted wire mesh water jet loom is a kind of twisted wire mesh loom independently invented and developed by our company (patent number: 201420381647.9). This machine is mainly used for the interweaving and weaving of plastic round yarn and high-strength chemical fiber yarn into a net. The machine adopts two heald frames and is equipped with a half heald device, so that the heald frame moves up and down while the half heddle moves left and right by the shedding mechanism, so that the warp yarns form an interweaving shed, and then the weft yarns are sprayed into the shed to weave into a net. At present, this interweaving machine can produce three kinds of products: three strand netting, five strand netting and seven strand netting.

Product Parameters

Model No.	KSJ-501	Selvedge Method	Interweaving Edge or Electric Ironing Edge
Condition	New	Weft Detection	Photoelectric weft detection
Reed Width	190, 230, 280, 340cm	Suitable Fineness for Weaving	20 Denier - 1800 Denier
Weft Feeding Method	Mechanical Weft Storage, Electronic Weft Storage	Suitable Raw Materials For Weaving	Polyethylene or Polypropylene Plastic Round Yarn, Chemical Fiber Yarn;
Speed Per Minute	250-350 rpm

Company Profile
Established in April 2002, Qingdao Kaishuo Machinery Technology Co., Ltd. is located in Qingdao, a beautiful coastal city, and Wangtai Town, Huangdao District, Qingdao, which is a famous textile machinery town in China. The company has a superior geographical position and convenient transportation by sea, land and air. The company covers an area of 27,000 square meters, with a building area of 14,000 square meters, and has 126 employees, including 43 engineers and technicians. It is one of the rapidly rising and growing industrial enterprises in Qingdao in recent years. After just a few years of development, Qingdao Kaishuo Machinery Technology Co., Ltd. has developed into a professional manufacturer of water-jet looms integrating R&D, manufacturing, sales and service. The company takes "continuous innovation in technology, steady improvement in quality and excellent service" as its business philosophy, strictly follows the enterprise policy of "developing the factory by science and technology, establishing the factory by quality, taking innovation as the soul and putting the brand first", adheres to the management concept of "zero defect in quality" and takes "better quality and better service" as its eternal pursuit. Enterprises attach great importance to the application of "new materials and new processes" in technological development. According to the market demand, we constantly develop new products to meet the requirements of our customers.


Certifications

Exhibition show

Workshop Display

Product Details

FAQ
About Water Jet LoomQuestion:What rotate speed can a water jet loom achieve?Answer:The rotational speed of a loom is related to factors such as reed width, fabric type, and yarn specification. Our 8010 model is designed to rotate at a maximum speed of 1200 rpm, but may vary slightly depending on the type of fabric.Question:What is the power consumption of a water jet loom?Answer:The power consumption of water jet looms is related to the appropriate motor power, typically between 2.2 kw and 4.5 kw. Users can choose to install a motorized spindle, which saves 20% - 25% more power than ordinary asynchronous motors.Question:How much water does a water jet loom consume per day?Answer:The water consumption of a water jet loom is related to the loom speed, operating efficiency, and the warp and weft density of the fabric. Generally speaking, the average daily water consumption in 24 hours is 3-5 tons. Water jet loom with water circulation treatment system can achieve 100% water recycle.Question:What kinds of fabric water jet looms can made?Answer:Water jet looms are widely used in the field of chemical fiber,common high-density products such as clothing fabrics, home textile products, spandex fabrics, shade fabrics, luggage fabrics, lining cloth, and fluffy fabrics can be woven using water jet looms.

---
