US$12,000.00-17,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Automatic Grade
Automatic
Certification
CE, ISO 9001
Max. Size of The Wheel
32 Inch
Spindle Speed
50-1800 Rpm
Stations of Tool Holder
4 Station
Length of The Rail
1650mm
Transport Package
Wooden Case
Specification
CE, SGS, ISO
Production Capacity
35 PCS/ Mounth
Product Description

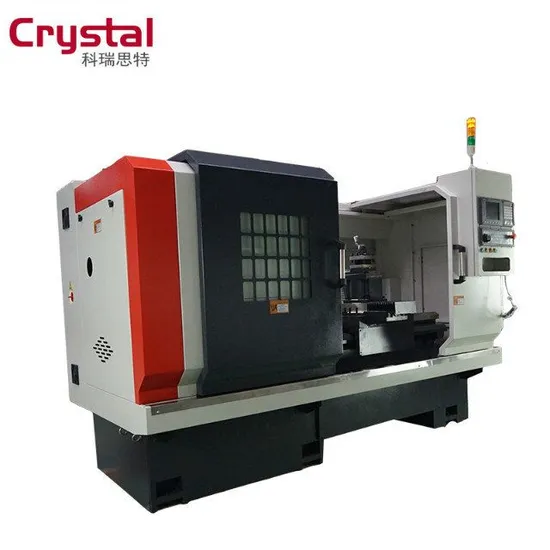

AWR32H car wheel repair cnc lathe polishing machine with USB transmission
CNC alloy wheel lathe machines are designed for repair and refurbish alloy wheel. Be
applied to the full face and lip of the wheel. The machine is very easy to operate. Operator
don't need to learn complicated programme and do higher efficiency and spectacular finishes.
Product Display
CNC alloy wheel lathe machine Features:
1. Cuts wheel up to 32''.
2. With CE, SGS, ISO, BV certificates.
3. Automatic ruby probe system.
4. Easy operation.
5. Self-developed optimization software.
6. Free training video and manual instructions.
7. 7x24 hours technology support.
8. 2 USB interface.
9. High efficiency and economic.
10. Two-year warranty.
11. Free factory hand-to-hand training.
12. Agencies in UK, Germany, Poland, Netherlands, Australia etc.
CNC alloy wheel lathe machine : Specifications
ITEMS
| AWR32H
|
Max. swig over bed (mm) (inch)
| Φ880(34')
|
Max. Size of alloy wheel (mm) (inch)
| Φ820(32')
|
Adjustable stroke of carrier in X direction (mm)
| 100
|
Cross slide travel (mm)
| 450
|
Width of the rail (mm)
| 400
|
Length of the rail (mm)
| 1650
|
Size of the three-jaw chuck (inch)
| 16'
|
Range of spindle speed (rpm)
| 50~1800
|
Spindle speed control
| Automatic
|
Spindle bore (mm)
| Φ82
|
Taper of spindle bore
| 1:20(Φ90)
|
Max. size of tool post
| 25×25mm
|
Stations of tool carrier
| 4 position
|
Min. setting unit of motor
| (Z) long 0.001mm, (X) cross0.001mm
|
Moving speed of post
| (Z) long 8m/min, (X) cross6m/min
|
Motor power
| 7.5KW
|
Machine base(cast iron base)
| Separated
|
Machine size (L×W×H) (mm³)
| 2970×1660×2080
|
Net weight
| 3200kgs
|
Standard configuration:
Diamond Cutter 1 set
| 3-Jaws Chuck(With Special Soft Jaws)
|
high precision prob system 1 set
| SYNTEC CNC Controller
|
Manual Quick Change Toolpost,Four-station
| Work Lighting System
|
Automatic Lubrication System
| Cooling System
|
Full Enclose(Security Guard Door)
| Tools&Tool Box
|
Self developed professional wheel repair software
| Training Video CD |
>>
