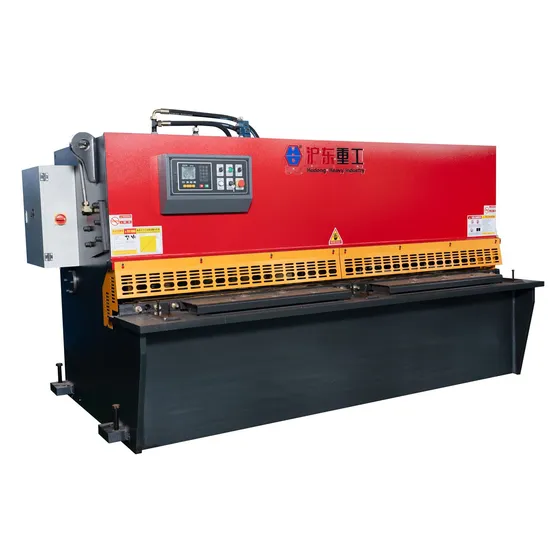

Hydraulic Pendulum Swing Beam Shear Machine Steel Plate Shearing 8mm Metal Sheet CNC Cutting Machine

Product Description

Hydraulic Pendulum Swing Beam Shear Machine Steel Plate Shearing 8mm Metal Sheet CNC Cutting Machine
Product Description
The Chinese-supplied Hudong 3200mm QC12y Hydraulic Plate CNC Guillotine Hydraulic Pendulum Steel Shearing Machine epitomizes cutting-edge technology and meticulous craftsmanship, designed to deliver exceptional precision in the shearing of steel plates. Discover the advanced capabilities and intricate details of this remarkable machinery:
Product Overview:
The 3200mm HUDONG QC12y Hydraulic Plate CNC Guillotine Shearing Machine seamlessly integrates the robust power of hydraulic engineering with the precision-driven advantages of Computer Numerical Control (CNC) technology. This sophisticated combination ensures unmatched efficiency and smooth operation in metal cutting tasks. Featuring a state-of-the-art hydraulic pendulum shearing mechanism, this machine guarantees precise and effortless cutting of steel plates, accommodating a maximum width of 3200mm with ease and precision.
Detailed Photos
Main Parts:
Main Technical Parameters of Equipment:
Product Parameters

TYPE	Cutting thickness	Cutting Width	Cutting angle	Dimension	Material strength	Stopper adjust range	Travel times	Power
	(mm)	(mm)	(°)	(mm)	(KN/cm)	(mm)	(1/Min)	(kw)
4*2500	4	2500	1°30'	3040x1550x1550	≤450	20~500	14	5.5
4*3200	4	3200	1°30'	3840x1550x1550	≤450	20~500	12	5.5
4*4000	4	4000	1°30'	4600x1700x1700	≤450	20~600	10	5.5
4*6000	4	6000	1°30'	6460x2100x2200	≤450	20~800	5	7.5
6*2500	6	2500	1°30'	3040x1710x1620	≤450	20~500	14	7.5
6*3200	6	3200	1°30'	3840x1710x1620	≤450	20~500	12	7.5
6*4000	6	4000	1°30'	4620x1850x1700	≤450	20~600	9	7.5
6*5000	6	5000	1°30'	3140x1710x1620	≤450	20~600	8	7.5
6*6000	6	6000	1°30'	6480x2100x2300	≤450	20~800	5	11
8*2500	8	2500	1°30'	3040x1700x1700	≤450	20~500	11	7.5
8*3200	8	3200	1°30'	3860x1700x1700	≤450	20~500	8	7.5
8*4000	8	4000	1°30'	4640x1700x1700	≤450	20~600	8	7.5
8*5000	8	5000	1°30'	5400x2400x2000	≤450	20~600	8	7.5
8*6000	8	6000	1°30'	6480x2100x2350	≤450	20~800	8	11
10*2500	10	2500	1°30'	3040x1800x1700	≤450	20~500	10	11
10*3200	10	3200	1°30'	3860x2000x1700	≤450	20~500	10	11
10*4000	10	4000	1°30'	4650x2100x2000	≤450	20~600	10	11
10*6000	10	6000	1°30'	6500x2100x2300	≤450	20~800	10	15
12*2500	12	2500	2°	3140x2050x2000	≤450	20~600	12	18.5
12*3200	12	3200	2°	3880x2150x2000	≤450	20~600	10	18.5
12*4000	12	4000	2°	4650x2150x2000	≤450	20~600	10	18.5
12*5000	12	5000	2°	6900x2600x2700	≤450	20~600	6	18.5
12*6000	12	6000	2°	3140x2150x2000	≤450	20~1000	5	18.5
16*2500	16	2500	2°30'	3140x2150x2000	≤450	20~600	10	18.5
16*3200	16	3200	2°30'	3880x2150x2000	≤450	20~600	10	18.5
16*4000	16	4000	2°30'	4650x2150x2200	≤450	20~800	10	18.5
16*5000	16	5000	2°	5900x2600x2700	≤450	20~1000	6	18.5
16*6000	16	6000	2°	6900x2700x2700	≤450	20~1000	5	22
20*2500	20	2500	3°	3440x2300x2500	≤450	20~800	8	22
20*3200	20	3200	3°	4150x2350x2700	≤450	20~800	8	22
20*4000	20	4000	3°	4850x2600x2400	≤450	20~1000	5	22
20*6000	20	6000	3°	6700x3000x3000	≤450	20~1000	4	22

Main Configuration of Equipment:

serial	model name	Brand	serial	model name	serial
1	numerical control system	Mitsubishi	14	Alloy knife	Dasan
2	Pneumatic electromagnetic valve	STNC	15	linear guide rail	HIWIN
4	servo drive	Easycat	16	High precision ball rod	HIWIN
5	servo motor	Easycat	17	Precision gear teeth	AMD
6	Planet reducer	AMD	18	angular contact ball bearing	NSK
7	PLC	Easycat	19	Double film coupling	GND
8	Single / bipolar air switch
9	AC contactor, thermal relay
10	Circuit breaker, button
11	midget relay
12	Machine tool flexible power cable	igus
13	proximity switch	Easycat

Company Profile
HUDONG HEAVY INDUSTRY MACHINERY MANUFACTURING CO.,LTD. is a specialized company, designated by the nation to produce forging equipments, press brake, shearing machine, press machine and rolling machine etc., with a producing histroy of more than30 years.
The company has developed rapidly on design development and manufacture capability of products. We adopt advanced processing equipments, perfect designs, masterly craftwork and beautiful appearance. Our product has a strong structure, and a safe and reliable performance. Part of products win the title of "Award of high quality". And our company has been rated for consecutive years as "AAA Credit Unit", "Heavy Contract, Keep Promise Unit", "Customer Product Satisfaction Demonstration Unit", etc.
Our products have passed certificate of ISO9001:2008 Quality Management System, and all of our products are audited by the European Union CE certification.
The production management scale has been extended year after year with advantaged product market and high recognition by the customer. Since the past 30 years, the company has always adhered to the faithful management idea of "Customer First, Quality First", and established reliable market channel as well as mature clienteles. No matter at the present or in the future, our pursued objective for product quality is always: high-grade, high-precision, advanced technology, striving for manufacturing the most perfect machines.
FAQ
Q1. Are you a factory or a trading company?
A: Maanshan Hudong Heavy Industry Machinery Manufacturing Co.Ltd is a professional manufacturer of press brake, shearing machine, fiber laser cutting machine and other sheet metal processing equipment. We have more than30 years of manufacturing experience, and our products were exported to more than 90 countries and regions.
Q2. This is the first time I use this kind of machine, is it easy to operate?
A: Detailed installation and operation instructions are sent to you free together with the machine. Free training courses are offered in our factory. Engineers are available to serve overseas but all the expense needs being paid by your side. Video technical support and online support are provided, 24 hours technical support by calling, video and email.
Q3. What is your normal lead-time?
A: Lead-time for a routine order would typically be 25-30 days. However, this varies with a number of factors including order size, machine model, workpiece complexity and shop load, to mention a few. Lead times are provided with all quotations. Please advise us if a rush order is required and we can usually accommodate.
Q4. Where are you located? How do I get there?
A: Maanshan Hudong Heavy Industry Machinery Manufacturing Co.Ltd is located in Maanshan city, Anhui Province, China; near Nanjing and Shanghai.
You can fly to Nanjing airport or Shanghai Hongqiao airport, or take high-speed rail to Nanjing South Railway Station, then we will pick you up.

---
