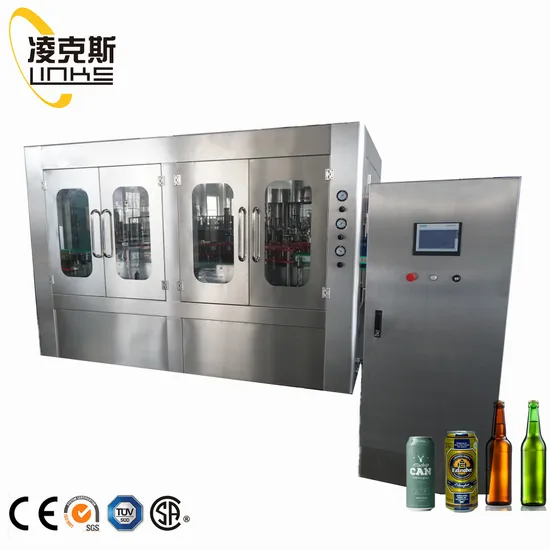

Beer Filling Machine Beer Bottle Filling Semi Automatic Beer Filling Line

Product Description

Products DescriptionHigh Quality Glass Bottle Beer Filling Machine / Bottling Equipment*We supply complete solution for the beer production line ,including Beer filling machine (Rinsing,filling capping 3in1) ,
Beer cold glue labeling system ,beer film packaging machine & carton box packing machine ,also can supply the beer processing system ,like saccharification system & filteration system ,and fermentation and storage system

Technical parameter :Beer Filling Machine
Model	BXGF12-12-1	BXGF12-12-4	BXGF18-18-6	BXGF24-24-8	BXGF32-32-10	BXGF40-40-12
Capacity (for 500ml)	500bph	1000bph	1500bph	3000bph	6000bph	10000bph
Suitable bottle	Glass Bottle / PET Bottle
Bottle volume	200ml ~ 1L
Compressor air	0.3-0.7Mpa
Air consumption	0.37 m3/min
Rinsing pressure	>0.06Mpa <0.2Mpa
Application	Beer filling machine
Total power (KW)	1.2kw	3.6kw	4.8kw	5.8kw	6.2kw	7.8kw
Overall dimensions	2.3*1.9m	2.5*1.9m	2.8*2.15m	3.1*2.5m	3.8*2.8m	4.5*3.3m
Height	1.8m	2m	2.2m	2.3m	2.5m	2.6m
Weight(kg)	800kg	2000kg	3000kg	4500kg	8000kg	12000kg

Introduction:This beer filling machine is my company's introduction of German technology, combined with the characteristics of beer production industry, designed to develop small-scale beer filling equipment. The machine has excellent mechanical operation reliability,improved rinsing, filling, cover screwing, disinfection sterilization and other functions.Detailed ImagesMain Features1)The rinsing machine using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the
glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean.
2)Filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.
3)Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.
4)Stainless steel plunger and mechanical stirring gland-type magnetic reasonable cap to ensure that the gland is healthy and
reliable. Hopper and the cap taking- cover, capping transmitted by magnetic. The capping is reliable and automatic
unloading,reducing the rate of broken bottles.
5)Before the capping, use hot water bubble set to displace bottlenecks air, ensuring the oxygen content of less than 0.15mg / L.
6)Filling machines includes broken bottle automatically stopping valve, broken bottle washing, and foam automatically exhausting device.
7)With perfect CIP cleaning function, and capable of rinsing filling pipes with acid, lye liquid and hot water.
8)All the materials in contact with the valves, tanks, pipes are made of stainless steel 304 materials, inside and outside the
wall of mirror-polished, ensuring it is healthy.
9)Manually dry oil lubrication system to make sure equipment maintenance is more convenient.
10)The whole operation adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; no cap no operation, and other security protection.

Name	Brand	Area
PLC	Siemens	Germany
Inverter	Siemens	Germany
Contactor	Siemens	Germany
Touch screen	Siemens	Germany
Motor	ABB	Swiss
Pneumatic parts	SMC	Japan
Electrical parts	Siemens	Germany

Brewing system saccharification system & filteration system ,and fermentation and storage system Turnkey Project DesignIncluding beer material supply ,electrical system ,public water system .FAQ1) Can your factory provide the whole plant from A to Z?
A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) Are all machinery your factory made?
A: Our factory make the water purification and filling packing plants. We do not make the bottle making machinery,
we have good quality bottle making machinery partner, and we provide to customer same long warranty time and good after service.
3) How can I know the machinery quality before I order?
A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.
4)What certificates you can provide?
A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect
5)Can your factory make the bottle drawing, workshop layout, and labels for us?
A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)
6)Installation and Training Time
A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.

---
