Solar Mounting Systems C Strut Channel Roll Forming Machine

Product Description

Product Description

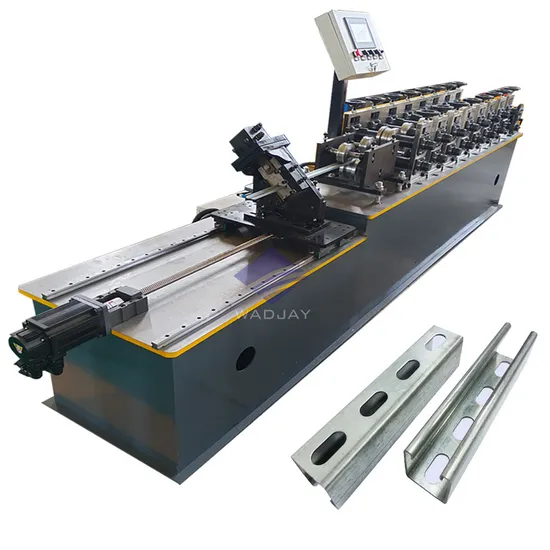

solar mounting systems c strut channel roll forming machine
Roll forming equipment production process flow
Uncoiling → Leveling → Roll forming → Punching → Flying saw non-stop cutting → Products receiving table
Profile drawing of solar channel roll forming machine
1, Material: zinc aluminum magnesium, galvanized sheet, black belt can be.
2, Material thickness: 1.8-3.0
Main equipment of solar structures roll forming line

ITEM	EQUIPMENT	QUALITY
1	3 TON DECOILER	1 SET
2	ROLL FORMING MACHINE	1 SET
3	CUTTING SYSTEM	1 SET
4	LEVELING SHEET	1 SET
5	PLC CONTROL SYSTEM	1 SET
6	PRODUCTS RECEIVING TABLE	1 SET
7	HYDRAULIC PUNCHING	1 SET

Decoiler
Frame structure: cantilever type
Sheet width: less than 300mm;
Coil inner diameter: φ508mm;
Expansion mode: manual expansion;
Inner diameter expansion range Phi 480-560 mm;
Coil maximum outer diameter :φ1300mm;
Carrying weight: ≤3t
Leveling sheet
Flattening method: 5 roll flattening
Roller diameter: 100mm
Press width: 139-141mm
Press thickness: 2.0-2.5mm
Roller of roll forming line
Molding pass: 22 sets
Auxiliary wheels: 12 rows of auxiliary wheels to prevent the strip from deviating and assist the forming of photovoltaic support
accurately.
Gantry frame form: 55mm cast steel plate type unit
Hydraulic Punching & Cutting
Molding pass: 22 sets
Auxiliary wheels: 12 rows of auxiliary wheels to prevent the strip from deviating and assist the forming of photovoltaic support
accurately.
Gantry frame form: 55mm cast steel plate type unit

Packaging & Shipping

Company Profile
FAQ
Q1: How long is the warranty?
A1: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods .If needed ,we will provide free accessories. Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.
Q3: How can I get sample and how long will it take?
A3: Sample policy is different for different items. Please kindly contact us to get details.

Q4: What's the MOQ?
A4: MOQ is different for different items, please kindly contact us for confirming.

Q5: How do I pay for my purchase order?
A5: T/T, L/C at sight, Western Union, MoneyGram.

Q6: What is your terms of payment?
A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance.

Q7: How about your delivery time?
A7: Generally, It will take about 7~15 days to send goods out. The specific delivery time depends on the items and the quantity of your order.

---
