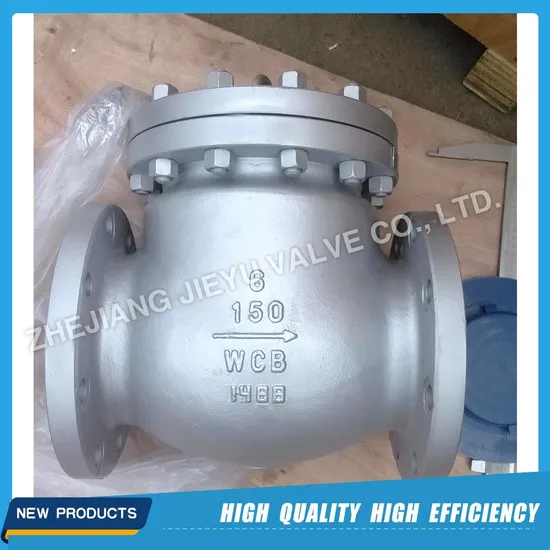

Cl150 Nps 12 API Swing Check Valve Flange Ends

Product Description

CL150 NPS 12 API Swing Check Valve Flange Ends
Specification:
Size:NPS1/2~NPS32
Model: H44H/H44W
Pressure:CL150~CL900
Material: WCB, LCB, WC6, WC9, C5, CF8, CF8M, CF3, CF3M.Etc
Standard:
Design and Maufacture: BS1868, ANSI B16.34
Face to Face Dimension: ANSI B16.10
End Flange Dimension: ANSI B16.5
Pressure-Temperature Ratings: ANSI B16.34
Pressure Test: API 598.

Nominal Pressure	150LB(2.0Mpa)	300LB(5.0Mpa)	600LB(10.0Mpa)	900LB(15.0Mpa)	1500LB(25.0Mpa)	Test Medium
Shell Test	3.0Mpa	7.8Mpa	15.0Mpa	22.5Mpa	37.5Mpa	Water
Seal Test	2.2Mpa	5.6Mpa	11.0Mpa	16.5Mpa	27.5Mpa
Air Seal Test	80lb(0.6Mpa)	80lb(0.6Mpa)	80lb(0.6Mpa)	80lb(0.6Mpa)	80lb(0.6Mpa)	Air

Products: Zhejiang Jieyu Valve Co., Ltd. is a manufacturer of gate valves, globe valves, check valves, and ball valves with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in petroleum, chemical industry, metallurgy, electric power, pharmaceutical, paper, urban construction and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
show of power
FAQ:
1. Yes, sample order is available for quality check and market test. But please pay for it.2. It usually takes about 25-30 working days to produce. For big order, it depends on the order quantity.3. We usually accept T/T, L/C, Western Union, Cash.4. We offer 12months warranty time.5. Depends on your request, we have standard models in stock. Some special products and big order will be newly produced according to your order.6. Yes, different models can be mixed up in one container.7. Quality is priority, we always attach the importance to quality control from the beginning to the end of the production.Every product will be fully assembled and carefully tested before painting, packing and shipping.8. Yes, we have the right to export and can sell product all over the world.9. Our company has been audited and approved API 6D, CE 0036, ISO9001. Test report will be provided when all goods finished. Also we are the ******'s gold supplier since 2010. Now we clients all around the world.
Thanks for your time. We are looking forward to your reply.

---
