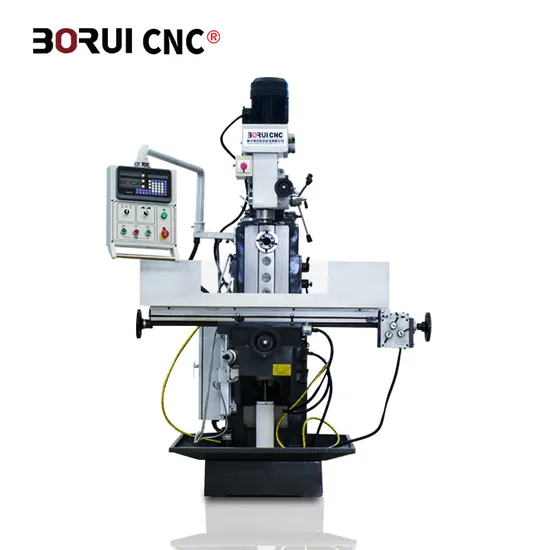

Zx6350 High Speed Drilling Milling Machine Metal Bench Drilling Machine Specifications

Product Description

ZX6350 High Speed Drilling Milling Machine Metal Bench Drilling Machine Specifications Product Description
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
The main performance characteristics:
Using rectangular guide machine is Rigid good,
Work table and guide rail through the ultra audio spark quenching.
Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
Milling head can be rotated 45 degrees,
DRO supplied at extra cost.
The main specification:

Specifications	Units	ZX6350C	ZX6350D	ZX6350S	ZX6350ZA
Table size	mm	1200x280	1200x280	1200x280	1200x280
Table stroke	mm	600x230	600x230	600x270	600x270
Distance from spindle nose to table surface	mm	110-470	110-470	100-400	100-400
Spindle travel	mm	120	120	120	120
Max. drilling dia.	mm	50	50	50	50
Max. tapping dia.	mm	M16	M16	M16	M16
Max. vertical milling dia.	mm	25	25	25	25
Max. end milling width		100	100	100	100
Spindle speed range	rpm	115-1750(V) 38-1310(H)	115-1750(V) 38-1310(H)	115-1750(V) 38-1310(H)	115-1750(V) 38-1310(H)
Spindle motor power	KW	0.85/1.5(V) 2.2(H)	0.85/1.5(V) 2.2(H)	0.85/1.5(V) 2.2(H)	0.85/1.5(V) 2.2(H)
Overall dimensions	mm	1580x1330x2250	1580x1330x2250	1655x1450x2150	1655x1450x2150
Machine weight	Kg	1350	1350	1500	1500

Standard Configuration:
·Drill chuck
·Mill chuck
·Inner hexagon spanner
·Work light
·Spindle arbor
·Wrench

·Mchine vice

· Horizontal milling arbor
Optional configuration:
·DRO on X, Y, Z--AXIS
·Clamping kit
·Universal dividing head
·Rotary work table.
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on ******, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q:How can I make the payment?
A: We can make the deal on ****** online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q:How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.

---
