Direct Drive Motor for Lockstitch Sewing Machine

Product Description

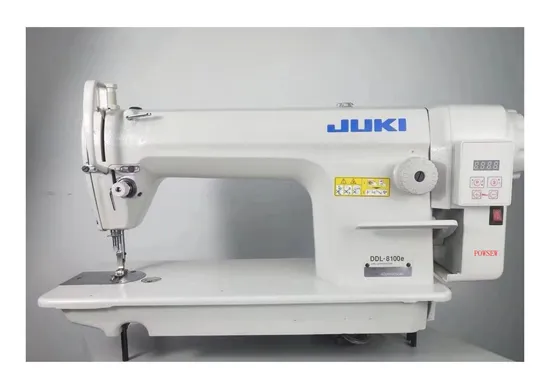

S1B-8700A/8100/5200 Direct-drive Servo Motor
Apply to all kinds of Lockstitch JUKI sewing machine such as DDL-8700A/8100/5200 series
Main Feature: 1. Integrated circuit board design for more reliable internal connections.
2.Integrative structure, equipped with bobbin winder( If you need the bobbin winder, you need to pay separately). Easier installation and more reliable performance.
3.Powered by high performance direct-drive servo motor. Powerful torque, low noise, more stable quality and more energy efficient.
4.The control box design has a block protection function, which is greatly reduces the motor coil fault.
5. Adopt large capacitors to ensure long life of control box.
6.100% power requests motor copper rotation.
7.The PCB special design for power fluctuation, frequently power off and on, with short but very higher voltage district power by generator.
8. It is also ok for the old Juki DDL 8100E/8700A/5200 series sewing machine.
9. The control box has the below function: Speed adjustment, Needle position up and down, 12V LED output and 220V output.
S1B integrated motor base installation diagram as followed:



The Parameter:

Model	Application	Speed	Voltage	Power	Frequency
S1B-8700A	Lockstitch for JUKI machine	300-6500r/min	220V/110V	550W/750W	50/60Hz
S1B-8100E	Lockstitch for JUKI machine	300-6500r/min	220V/110V	550W/750W	50/60Hz
S1B-5200	Lockstitch for JUKI machine	300-6500r/min	220V/110V	550W/750W	50/60Hz

---
