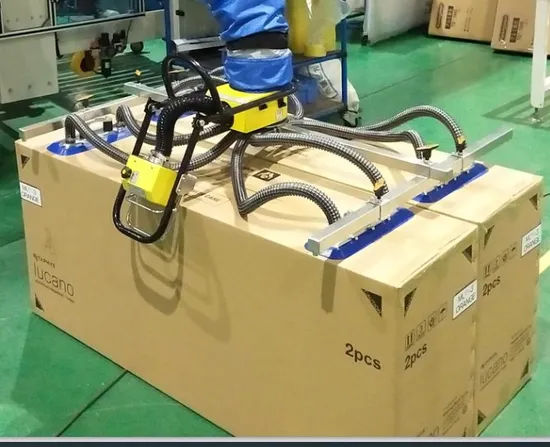

Multiple Vacuum Gripper for Multiple Boxes Handling at Once Customized Suction Cup Vacuum Tube Lifter

Product Description

Product Description
Vacuum tube lifter is a new ergonomic solution for material handling .It's ideal to pick up carton box,wooden plate,sack,drum,etc.Whether it is stacked cartons, moving iron or wood, loading oil drums, placed slate can be used.It's good to avoid manual handling with awkward,tiring,heavy going and high risk of injury to operate.

Different from the traditional crane need to hook and up and down buttons to carry items, fast vacuum handling machine will be suction function, up and down control in a control grip, just use the sucker to quickly move to improve the traditional crane operation slow Disadvantages.
Grip from the top or the side, lift high above your head or reach far into pallet racks
Characteristic
1,Characteristic
Lifting capacity: <270 kg
Lifting speed: 0-1 m/s
Handles: standard / one-hand / flex / extended
Tools: wide selection of tools for various loads
Flexibility: 360-degree rotation
Swing angle240 degrees
Easy to customize
A large range of standardized grippers and accessories, such as swivels, angle joints and quick connections, the lifter is easily adapted to your exact needs.

Serial No.	VEL140-2.5-STD	Max capacity	40kg
Overall Dimension	1330*1060*780mm	Vacuum equipment	Manually operate the control handle to suck and place the workpiece
Control mode	Manually operate the control handle to suck and place the workpiece	Workpiece displacement range	Minimum ground clearance150mm,Highest ground clearance1500mm
Power supply	380VAC±15%	Power input	50Hz ±1Hz
Effective installation height on site	Greater than 4000mm	Operating ambient temperature	-15ºC-70ºC

Features

Suction head assembly •Easy replace •Rotate pad head •Standard handle and flexible handle are optional •Protect workpiece surface	Jib crane limit •Shrinkage or elongation •Achieve vertical displacement
Air tube •Connecting blower to vacuum suctio pad •Pipeline connection •High pressure corrosion resistance •Provide security	Filter •Filter the workpiece surface or impurities • Ensure the service life of vacuum pump

Specification

Type	VEL100	VEL120	VEL140	VEL160	VEL180	VEL200	VEL230	VEL250	VEL300
Capacity(kg)	30	50	60	70	90	120	140	200	300
Tube Length(mm)	2500/4000
Tube Diameter(mm)	100	120	140	160	180	200	230	250	300
Lift Speed(m/s)	Appr 1m/s
Lift Height(mm)	1800/2500					1700/2400		1500/2200
Pump	3Kw/4Kw						4Kw/5.5Kw

Detail display

1,Air Filter	6,Gantry limit
2,Mounting bracket	7,Gantry
3,Vacuum blower	8,Air hose
4,Silence hood	9,Lift tube assembly
5,Steel Column	10,Suction Foot

Function
Protection against power failure: ensure that the absorbed material will not fall under power failure;
Leakage protection: prevent personal injury caused by leakage, and the vacuum system is well insulated as a whole;
Protection of current overload: that is, to prevent damage to vacuum equipment due to abnormal current or overload;
Stress test, in-plant installation test and other tests to ensure that each set of equipment leaving the factory is safe and qualified.
Safe adsorption, no damage to the surface of material box
Application
For sacks, for cardboard boxes, for wooden sheets, for sheet metal, for drums, for electrical appliances, for cans, for baled waste, glass plate, baggage, for plastic sheets, for wood slabs, for coils, for doors, battery, for stone.

Service cooperation
Since its establishment in 2006, our company has served more than 60 industries, exported to more than 60 countries, and Established a reliable brand for more than 18 years.
Company Profile

Our Advantages

Production Line

Certifications

Packaging & Shipping

FAQ
Q1: How can I get the best machine for me? A: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A: We will have the free technical training, and send you Software Operating Instructions in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
A: We could send free parts to you in warranty period if machines have any problem under "normal use". you need to pay the postage.
Q4: What's the guarantee, in case the machine breaks down?
A: The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q5: How long is the delivery time?
A: For standard machines, it would be 20-30 days; For non-standard machines and customizedmachines according to client s specific requirements, it would be 45 to 60 days.

---
