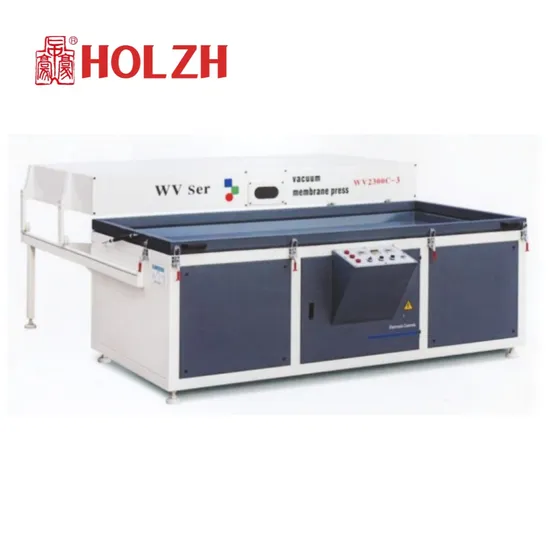

Woodworking Machinery PVC Veneer Vacuum Door Cabinet Laminating Lamination Membrane Press Machine

Product Description

Model	WV2300C-3	WV2500C-3	WV2550C-3
Worktable size	2300*1100mm	2500*1100mm	2550*1300mm
Max Workpiece size	2200*1000mm	2400×1000mm	2450*1200mm
Total power	25 Kw	26.5 Kw	26.5 Kw
Vacuum	-0.1Mpa	-0.1Mpa	-0.1Mpa
Overall dimensions	2500*2700*1150mm	2700*2700*1150mm	2750*2900*1150mm
Packing dimensions	2850*1600*1800mm	2850*1600*1800mm	3100*1600*1800mm
Weight	500kg	600kg	650kg

Characteristics:
1. Design unique, innovative, easy to operate.
2. The high degree of automation, installation easy, simple operation, easy to learn., this machine achieved that when we need to heating then heating, when we don't need to heat then without heating. it save much energy.
3. Saving energy. This machine use near-infrared heating pipe, heating fast and temperature higher. Therefore it solves the problem of long time of pre-heating, and saves 30 minutes waiting time.
4. Direct Connect vacuum pump, low noise, small size, high technology content.
SAMPLE
