34 Ton Excavator and Mini Digger Hx340HD with 1.74cbm Bucket Capacity

Product Description

Product Description

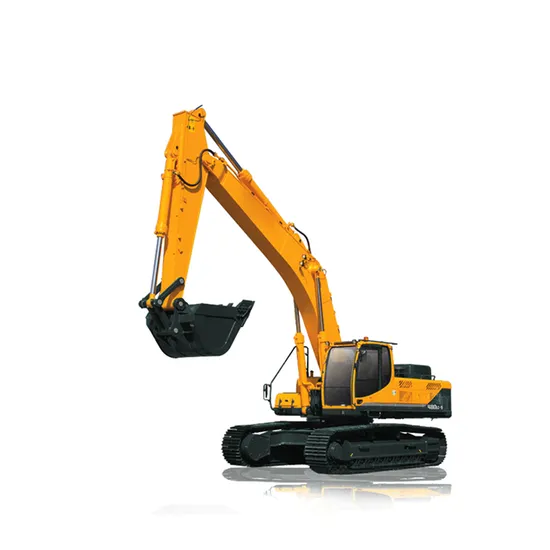

HYUNDAI HX340HD 33ton crawler excavator with breaker
33,000kg operate weight1.44cbm bucketCUM--MINS 6CT;194kW; Euro 2; Mechanical fuel system KAWA--SAKI hydraulics
SUPERIOR PERFORMANCE·Heavy Duty Boom & Arm·New Variable Power Control·HM8.3·Reinforced Bucket and Bucket Linkage·Powerful and Preciser Swing Control·Strong and Stable Lower Frame·Single Layer Cooling System·Minimization of Shock and Vibration through Cab Mounting System
COMFORTABLE OPERATION·New Front Side Air-conditioning System·Smooth Travel Pedal and Foot Rests·Improved Intelligent Display·Easy-to-Reach Control Panels·Wide Cab with Excellent Visibility·Highly Sensitive Joystick and Easy Entrance·Wide, Comfortable Operating SpaceSERVICEABILITY AND EASY MAINTENANCE·Easy to Maintain Engine Components·Centralized Electric Control Box and Easy Change Air Cleaner Assembly·Side Cover with Left & Right Swing Open Type·Large tool box for extra storage·Highly efficient Hydraulic Pump·Hi-MATE (Remote Management System)Load Sensitive Hydraulic System Load sensing steering directs power through the steering system only when the steering system needs the force. When not steering, more engine power is available to generate breakout force, lift force, and results in reduced fuel consumption.
Large Capacity Fuel Tank for Long Working Time Large capacity fuel tank (290 ℓ) offers long working time.
Large Displacement Booster Pump Braking system has equipped large displacement booster pump ensure high reliability and safety

Product Parameters

Parameters
Operation Weight :	33000kg
Bucket Capacity :	1.44m³
Engine Model:	HM8.3
Engine Power:	194 kW (260 HP)
Travel Speed:	3.6-6.4km/hr
Swing Speed:	11.2rpm
Grade Ability:	35degree
Dimensions
Boom Length:	6450mm
Tumbler Length:	4940mm
Ground clearance of counterweight	1200mm
Tail swing radius	3570mm
Rear-end length	3510mm
Overall width of upperstructure	2980mm
Overall height of cab	3145mm
Min. ground clearance	500mm
Track gauge	2680mm
Overall height of guardrail (Opt)	3350mm
Overall length	11340mm
Overall height of boom	3540mm
Track shoe width	600mm
Overall width	3280mm
Operating range
Max. digging reach	10500mm
Max. digging reach on ground	10290mm
Max. digging depth	6660mm
Max. digging depth (8' level)	6450mm
Max. vertical wall digging depth	5660mm
Max. digging height	10050mm
Max. dumping height	6950mm
Min. swing radius	4440mm
