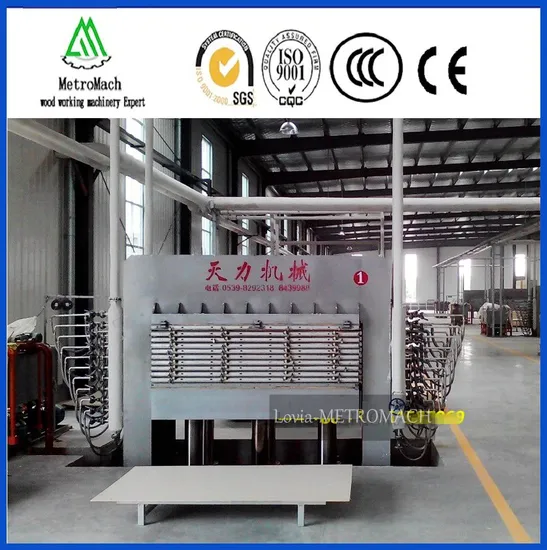

Woodworking Press Machine 4X8FT 15openings Hot Press for Plywood

Product Description

Plywood Hot Press machine is one of the main equipments in producing plywood,blockboard, film faced plywood, fancy plywood etc.
1.The main frame is welded with No.1 national standard steel plate,strong body, high rigidity.
2. Adopt micro computer control system and imported hydraulic units, easy to operate,long working life.
3. Adopt advanced hydraulic pump station and plunger cylinders, featured product--aviation technology low noisy hydarulic pump.
4. All the hot platens are made of the best quality steel plate, after solid drilled and fine polished, good thermal conductivity.
5. It has manual and automatic transfer function to meet user's demand.
Technial Parameters
1. Various pressure: 400T/500T/600T/800T/1000Ton and more.
2. Plywood sizes: 1220x2440mm, 915x1830mm etc.
Take 1220x2440mm plywood hot press for example:

Pressure	Hot Platen size	Cylinders	Unit pressure	Opening	Number of openings
400Ton	2700x1370x42mm	2xφ320mm	12kgf/cm2	60~100mm	5~20
500Ton	2700x1370x52mm	2xφ360mm	18kgf/cm2	60~100mm	5~20
600Ton	2700x1370x52mm	2xφ400mm	20kgf/cm2	60~100mm	5~20
800Ton	2700x1370x52mm	4xφ320mm	24kgf/cm2	60~100mm	5~20

How to pack and ship?
1. Machine body packed in plastic film
2. Spare parts and electrical parts packed in plywood boxes.
3. Fixed in container with steel wires.
Our Services?
1. Design and produce based upon your production need. Provide full sets of drawings and manuals.
2. One year warranty for the machine. Liftetime after-sales service and maintenance.
3. Professional team for oversea machine installation&debugging.
4. Help train and guide machine operating.

---
