600mm Arbitrary Angle Cutting Machine Single Head Automatic Upcut Mitre Saw for Aluminum Profile Single Head Aluminium Cutting Saw Machine

Product Description

Product Description

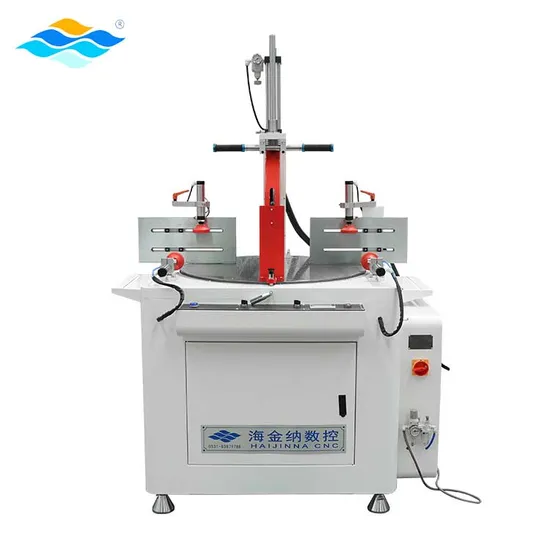

LSJ-600A is a single head upcut saw,cutting angle is variable from 30° to 150°.This saw can be used for making aluminum and pvc windows and doors,aluminum furniture and etc,This saw is mainly used for cutting aluminum, plastic profiles, arc profiles, windows and doors and curtain wall profiles.
Standard features Applicable material:aluminum,pvc,thermal break profile and curtain wall profile. Hydro-pneumatic saw feed. Saw blade feeds from bottom to top,variable cutting angles from 30° to 150°. Equipped with digital displays for reading the cutting length and cutting angle. Specification

Model	LSJ-600A
Air pressure	0.5-0.8mpa
Air consumption	60L/min
Motor power	3.3kw
Blade size	Ø600mm
Spindle speed	2840rpm
Feeding speed	0-3m/min
Angle regulation	Manual with digital display
Cutting angles	30° to 150°
Angle tolerance	≤5'
Planeness	≤0.1mm
Surface roughness	Ra12.5
Max.cutting W*H	200*200mm 90 degree 180*180mm 45 degree
Dimension	1350*1400*2100mm
Conveyor	4000mm
Weight	600kg

Details Images
Hisena CNC,since 2008
Our Team
Our Customers

FAQ
• Are you factory or trading company?
We are a factory with more than 10 years experience in manufacturing door and window equipmen
• What kind of payment methods do you have?
We support T/T and L/C payment.
• Do you have customized service?
Yes, we can do customized order.
• How about shipping time and method?
The delivery time of our regular stock machines is 10-15 days, and the shipping method is mainly by sea. Small machines, tools and accessories can be shipped by air.
• How long is the service life and warranty?
The designed service life of our machines can be more than ten years, and all machines have one year warranty except consumables.
• How to install and use the machine after arrival?
Our equipment has been debugged before leaving factory to meet production standard requirements.
We can provide engineers on-site installation training, remote videophone installation guidance, installationand commissioning videos, user manuals and variety methods.
• How to do the maintenance for machine?
Please carry out daily maintenance, monthly and annual maintenance and inspection for the machine according to the requirements in product instruction manual.

---
