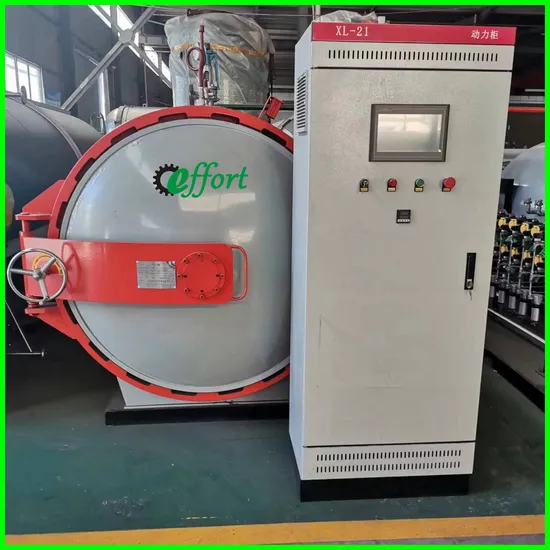

Rubber Curing Autoclave Electric Heating Rubber Vulcanization with Diameter From 0.8-3m

Product Description

China Autoclave Tank For Electric Heating Rubber Vulcanization with Diameter from 0.8-3m
It is mainly used for rubber products curing rubber desulphurization, wire, cable, tape, rubber rollers and other rubber products vulcanization. styrene-butadiene rubber thermoplastic refining, drying wood, shoes, Chinese medicine sterilization, oxidation of aluminum products, carbonization of bamboo products, Also widely used in the gypsum and its products and other materials autoclaving.
Our equipment which has advantages of stable and reliable performance is a new type of vulcanizing vessel, the temperature, pressure and time can be controlled automatically and it also easy to operate. And the equipment can save 30% of energy than other traditional equipment.
Working principle for steam hot-air vulcanizing autoclave
The steam enter into the cooling fin which in the tank of the steam hot-air vulcanizing by two sets of automatic valve. The cooling finds arrangement in the tank according to the certain rules. The draught fan which in the back of the tank make the quantity of heat spread evenly by special temperature cycle plates. Heat cycle form even temperature field. Thus it can prevent the different quality of the product because of the uneven temperature and pressure. After set working procedures, the heating, heat preservation, vulcanization and etc can be finished by automatic control system. The equipment stop working and give alarm after all procedures finished.
Working principle for electricity hot-air vulcanizing autoclave
Electric heated tubes which controlled by N groups of separate switch are arranged in the bottom of the tank according to certain rules. Only keep one or two groups of electric heated tubes working after reached working temperature, so it can save the energy and reduce the cost greatly. The temperature of the tank evenly and the pressure has no error, so it can prevent the different quality of the product because of the uneven temperature and pressure. After set working procedures, the heating, heat preservation, vulcanization and etc can be finished by automatic control system. The equipment stop working and give alarm after all procedures finished.
