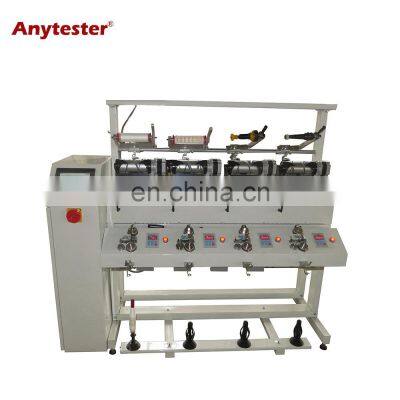

AT209 Lab Cone Winding Machine is a specified equipment in the textile industry as the bridge from the spinning of yarn to the manufacturing of fabric. It is the final process in the spinning of yarn to use tube yarn/cop to make bobbins/cones of large capacity for the manufacturing of fabric. The purpose of winding is to produce bobbin/cones of large capacity and to eliminate faults on yarn. For other purpose of loose winding before dyeing or compact winding after dyeing, please inform us before ordering.
Features
Touch Screen
★ Two control modes: uniform control on touch screen (optional) for spindles on each side and independent control on control panel for each spindle;
★Automatic length setting up to 999999 meter;
Variable-frequency Motor
★DC brushless motor to independently drive each grooved drum with adjustable winding speed;
Optical Yarn-breaking Detector
★Microcomputer controlled anti-aliasing;
★ Optional knotter and optional electronic yarn cleaner;
★Optional bobbin clamps for different bobbins;
★ Optical yarn breaking detector for each spindle;
Specifications
Model
| AT209
|
Number of spindles
| 4, 6, 12, 24, 36, ..., 108, 120
|
Grooved drum
| O/D82mm
Pitch: 2.5×147
|
Take-up package
| 3º30´, 4º20´,5º57´,9º15´or cylindrical
|
Max. package diameter
| ¢280mm
|
Max. length setting
| 999999 meter, electronic setting
|
Drive mode
| DC brushless motor with adjustable speed
|
Max. winding speed
| 1100meter/minute
|
Yarn-guiding traverse
| Standard 147mm
|
Radial anti-aliasing system
| Microcomputer control
|
Rated power
| 60W/spindle at max. speed
|
Power supply
| AC220V 50Hz, single-phase
|
