Xgs24 Xc Mg 24~50 M Diesel/Electric Aerial Work Platform for Sale

US$45,000.00
1-4 Pieces
US$35,000.00
5+ Pieces

Basic Info.

Model NO.
XGS24
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Special Weight Level
Moves
Moving
Driven Type
AC
Running Mode
Moving
Feature
Explosion-Proof, Insulating
Certification
CE, RoHS, ISO 9001
Transport Package
Nude
Specification
7050X2482X3025mm
Trademark
Oriemac
Origin
Jiangsu
Production Capacity
1000PCS/Month

Product Description

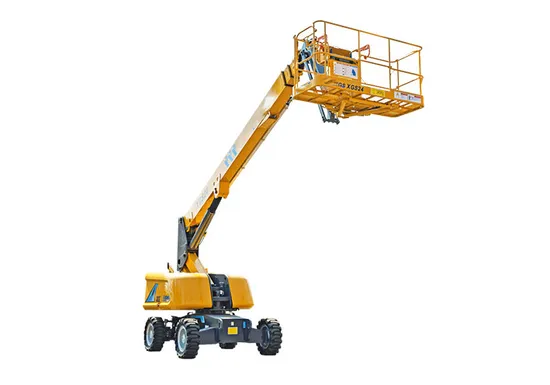

XGS24 XC MG 24~50 m Diesel/Electric Aerial work platform for sale
XGS24 self-propelled Telescopic Mobile Elevating Work Platform highlights with outstanding performance, efficiency, dynamics and easy operation. It is leading in the industry with maximum carrying capacity of 340kg, high operation height and amplitude, suit for construction of large load and wide operation area.
* Dual parallel linkage and telescopic arm could realize the dynamic adjustment of vehicle center of gravity, making the complete vehicle more stable.
* With 4WD, off-road wide tires and axle balance system, the machine is excellent in drive and adaptability to road.

* Multi-load envelope control technologies could real-time monitor the load, effectively making use of boom and making its work performance at leading edge.

* Auto balance extending mechanism improves safety of extending mechanism and extends service life of steel rope.

* Electrical control system adopts the distributed control technologies based on PLC and CAN, implementing the auto leveling, the weighting of platform payload, the dynamic monitoring and the fault warning.
Product Paramenters
Item
Unit
Parameter
Overall length of complete machine
mm
10150
Overall width of complete machine
mm
2490
Overall height
mm
2800
Wheelbase
mm
2500
Max. working height
m
24
Max. platform height
m
22
Max. working range
m
18.3
Max. load capacity
kg
230 (unrestricted)/340 (restricted)
Luffing range of boom
°
-5 ~ +75
Slewing angle of turntable
°
360
Max. tail swing
mm
1550
Dimension of platform
mm
2400×900
Slewing angle of platform
°
160
Overall weight
kg
12500
Max. traveling speed
km/h
6
Min. turning radius
m
6
Min. ground clearance
mm
230
Max. gradeability
%
45
Specification of tire
-
Solid tire 36×14-20/7.5 Or Foam tire 355/55D625
Engine model
-
Perkins 404D-22T
Engine rated power
kW/(r/min)
43/(2600)
