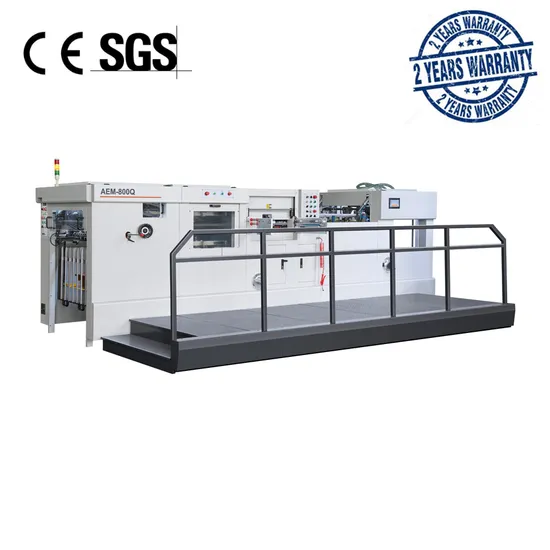

AEM-800Q Automatic Flat-Bed Die Cutter with Waste Stripping

Product Description

AEM-800Q Automatic Die Cutting Machine with Waste Stripping
Product Description Features
★ Complete design, accurate installation, high stability, high security, low noise.
★ Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
★ High precision intermittent mechanism, high cutting precision, running steadily.
★ Adopt European technology feeder, suction adjustable, steadily, precise, good paper applicability.
★ Non-stop feeding, pre-stacking and delivery device can shorten the auxiliary time, improve the efficiency.
★ Automatic pressure adjust system, pressure digital display.
★ Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
★ Pneumatic die locking device, die frame fixed more steadily, accurately, time saving.
★ Front lay, side lay, feeding device fine tuning device, paper positioning more accurate,
★ Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.
★ Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.
★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
★ Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
★ Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.

Detailed Photos Feeding Part

Host Part

Product Parameters

Max. sheet size	800×620mm
Min. sheet size	340×280mm
Max. die cutting size	770×600mm
Min.gripper margin	7mm
Inner chase size	820mm×628mm
Stock rang	90~2000g/m(card paper); 0.1~2mm(paper); <=4mm(corrugated paper)
Die cutting accuracy	≤±0.1mm
Max. working pressure	300 T
Max. working speed	7000s/h
Max. paper feeding stacking height	1400mm(including wooden pallet)
Max. paper collecting stacking height	1200mm(including wooden pallet)
Main motor power	7.5 kw
Overall dimension(length: including pre-feeding track)(width: including the pedal)	7000mm×4600mm×2400mm
Total weight of machine	9 Ton
Full-load wattage	13kw
Air pump displacement	0.6~0.7Mpa,≥0.37m3/min
