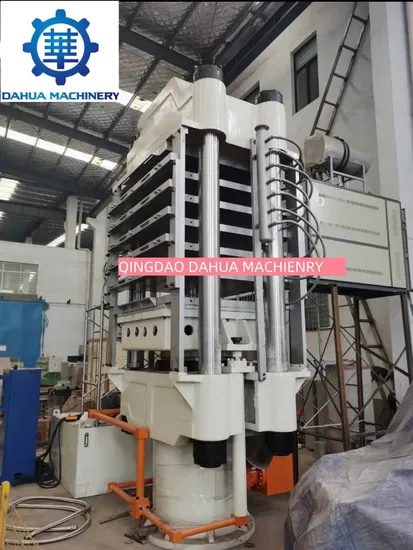

EVA Yoga Mat Foaming Machine EVA Making Machine

Product Description

EVA Wheel Making Machines / Baby Car EVA Wheel Foaming Machine / EVA Foaming Machinery / Yoga Mat Making Machine / EVA Foam Machine/ EVA Foaming Hydraulic Vulcanizing Press Our Advantages 1. High quality plate press2. Beautiful modeling, Compact structure3. Completive price4. High speed open/close mold, high production efficiency, protect mold. 5. Its structure is simpleand application is wide. It is easy to be operated6. We can provide hand control and electric control as customer's request. Product Description 1. Low operation height, Operation height in accord with human engineering 2. Extra height opening stroke Act by fixed opening stroke: 350mm, which is not affected by any mould thickness changes and 3. Available for 2plates mould, Mould thickness adjusting mechanism Mould adjusting scope: 100-200MM 4. Rapid mould opening, Act by toggle mechanism which opens the mould rapidly 5. Speedy injector movement Driven by linear-track, allowing speedy moving and precise positioning, Energy saving design 6. No need water circulation for mould station 7. Space saving design, Put oil tank together with injection base, which makes the structure compact and saves more space. Application: 1. This machine is mainly used for producing various EVA foam slippers, foam sheet, insulation materials, sports protective material, life jackets, sponges and other thermos rubber products. 2. Advantageous Features: Small temperature difference, reliable pressure performance, automatically pressure compensation during curing processMain frame use cast steel, piston adapt chilled cast iron, with surface rigidity of H-R-70.
Product Parameters

Type	XLB-DQ1200X1200X4	XLB-DQ1400X1500X6	XLB-DQ1500x1500x6
Total Pressure(MN)	5.00	8.00	10.00
Plate Size(mm)	1200x1200	1400x1500	1500x1500
Plate Clearance(mm)	150	150	150
Working Stroke	500	800	800
Plate Pressure(Mpa)	3.5	3.8	4.5
Motor Power(kw)	18.5	26	33
Overall Size(mm)	2400x2100x3200	2650x2400x3600	2750x2400x3600
Weight(kgs)	22,000	38,000	48,000

The machine is applicable for vulcanizing all kinds of EVA products and EVA sheet.
EVA foam products are widely used in shoe materials, plastic foam flooring, insulation materials,
luggage liner, sports protective material, diving clothing , life jackets , etc
Quick extrusion speed
High degree of automation
Five plate per time
The structure of the main machine is made from cast steel. The plunger is made from chilled cast iron with surface hardness, HR-70. the product has the superiority of less temperaturedifference, reliable insulation, and automatic pressure compensation during vulcanizing.
High Efficiency: adopted specific steel pipe to make heating-plate, large thermal conductive area, rapidly heating and cooling and its efficiency is 20% higher than the same kinds of products.
Material Saving: after grinding the shape-bored steel plate, which is smooth an polished, and 30% of mould release agent can be saved.
Steam Saving: the machine uses thermal keeping design and a thermal isolation cover is formed around the machine set, thus 20% of steam can be saved.
Detailed Photos Applicable products
Packing & Shipment: About Dahua : Qingdao Dahua Machinery Co.,Ltd. which was established in 2000 is affiliated to Shandong Rubber Machinery Research Institute.We specialize in scientific research,production and sales of Rubber Machinery.As keeping extensive close cooperation with Qingdao University of science and technology,Shandong University,China University of petroleum,Chinese Academy of Sciences we have made a great contribution to the development of China Rubber Machinery.
The company has experienced technical team,earnestly the grass-roots staff.We have advanced CNC machines and a variety of large and small mechanical processing equipment,heat treatment equipment and sophisticated detection equipment and introduced advanced UG 3D mechanical design software and performance optimization software in 2006. Our design team can design and manufacture non-standard rubber machinery according to customer requirements.
"Quality first, technology innovation" is the company's business principle,our products were rated as "excellent provincial famous brand" ,"free products" and exported to many countries and regions such as United States,Germany,France,Canada,Australia,South America and so on.With excellent quality and good customer service, the products have been well received among domestic and foreign customers!
We sincerely welcome customers all over the world to visit our company or call us to have a business negotiation, hope to make a good faith and win-win cooperation with you and common development hand in hand. Customer Show:
Hot Sales:
FAQ:
Q: Are you manufacturer or trade company?
A: We are really 100% manufacturer.
Q: How many year's experience does your company have?
A: More than 20 years of concentration, we mastered several key technologies.
Q: What product can you supply?
A: Rubber press machine, Vacuum molding press machine, Injection Molding machine, Rubber mixer machine, calender machine, extruder machine and rubber product equipment solvtions.
Q: What are the operating modes of the machine?
A: With manual and semi-automatic operation mode.
Q: What control system does the machine use?
A: We use PLC as the core of control system, we ususlly usee Omron PLC.
Q: How long is the warranty of your machinery?
A: Our warranty is one year.
Q: How long is the delivery time?
A: Usually we need 40-60 days , if ther id inventory , we can finish the modification within one month, but it may take longer if ther are special requiements

---
