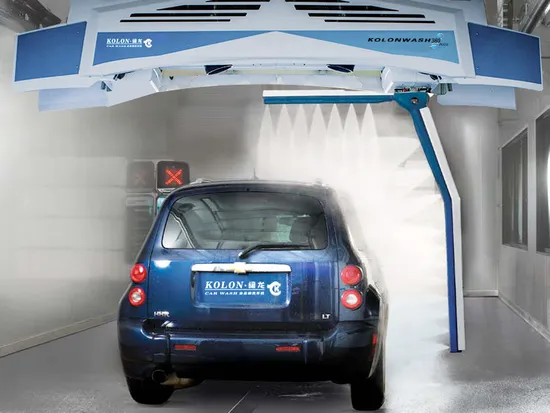

Touch Free 360plus Fully Automatic Car Washing Robot

Product Description

Hello, I'm from Shanghai kolon cleaning machinery Co., Ltd., specializing in the production of automatic car washing machines. We have 16 years of experience in the production, R & D and sales of automatic car washing machines. We hope to cooperate with you.


Spin 7-360 product configuration table
Standard car washing mode: Statistics of car washing quantity
Operation authority setting of intensive care car washing mode
Auto car washing mode fault self check function
Led prompt guide system cleaning reflector
Intelligent liquid proportioning system one key antifreeze system
Chassis tire flushing oil free function
Intelligent three-dimensional detection system with multi liquid reuse function
Self guided parking system safety alarm function
Automatic standby function of digital safety anti collision system
360 degree rotating flushing hot galvanizing installation frame
Car wash fluid operation platform
Highlight color system (color type) leakage protector
Warning system of crystal coated wax
Voice prompt system of magic color Shampoo
Embedded automatic air drying
Soft water spray
Remote control
Basic technical parameters
Overall dimension of equipment (length * width * height) 3500 * 1200 * 900 (mm)
Installation dimension requirements (length * width * height) 7500 * 3800 * 3350 (mm)
Overall dimension of proportioner (L * w * h) 800 * 450 * 1400 (mm)
Overall dimension of pump station (length * width * height) 1250 * 800 * 600
Larger car washing height 2050 (mm)
Wider car washing width: 2900mm
Larger car washing length 5900mm
Power requirements 380V / 22kw
Normal washing for 56 seconds / vehicle
Normal car washing mode - energy consumption 0.7/vehicle
Fine care washing 4 minutes 50 seconds / vehicle
Intensive care car washing mode - energy consumption: 4.5 yuan / vehicle
Total weight of equipment: 2600kg / 10.5m3
Total power: 45KW
2 tracks (7.5m)
13 frames
Accessories pipe fittings and accessory boxes
Product name / brand / power of equipment accessories
High pressure water pump German Pifu water pump motor power Siemens motor (18.5kw)
Fan motor power Siemens motor (20.5kw) fan air volume total pressure 11000pa / air volume 23000m3 / h
Rotary servo motor Taiwan delta transverse servo motor Taiwan Delta
PLC controller Siemens color touch screen Taiwan Delta
Ultrasonic sensor, German doublefour photoelectric sensor, bunner, USA
Proximity sensor, frequency converter,
Contactor relay of France Omron of Japan
Switching power supply Taiwan Mingwei longitudinal drive motor Jinlong motor (370W)

---
