Cement Fiber Tile Corrugated Roof Calcium Silicate Board Building Material Making Machine

Product Description

Calcium Silicate Board Making Machine

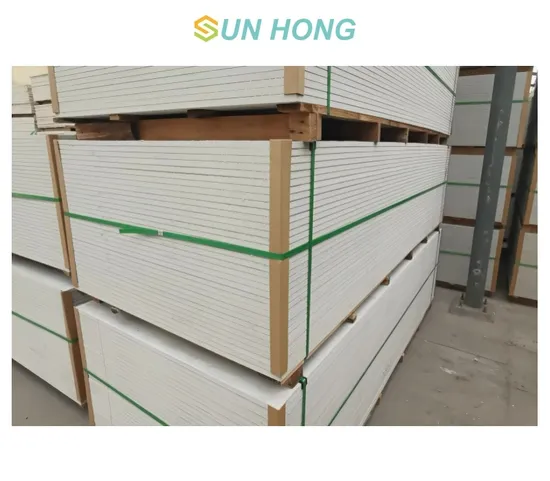

Calcium silicate board is a kind of gray-yellow green environmentally friendly decorative board, which is made of cement, quartz sand, fiber, silicon and calcium in a mixed ratio, and is made through multiple processes such as barrel molding, high temperature, steam curing, and pressurization. The strength and fire resistance of the calcium silicate board made through these processes are good. It also has good moisture resistance and corrosion resistance.
What is Calcium silicate board machine?
Calcium silicate board machine is also called calcium silicate board equipment. It is mainly made of siliceous materials, calcium materials and other accessories as raw materials. It is a new type of building material manufactured through pulping or slurry method, pulping, molding, steaming, drying, sanding and post-processing. Calcium silicate board is divided into calcium silicate board for insulation and calcium silicate board for decoration according to the raw materials. It is widely used in decoration for various purposes such as civil and commercial use.
The calcium silicate board equipment includes a series of calcium silicate board production lines. What equipment is needed for the calcium silicate board production line? The calcium silicate board production line is configured differently according to the processing technology and annual output. Flowing slurry method calcium silicate board production line equipment: pulp processing system, pulp section, board stacking demoulding section, pressure steaming curing section, edge grinding and chamfering sanding section.

Asbestos Cement Tile Machine
The asbestos tile machine is mainly made of raw materials such as ordinary Portland cement, asbestos fiber, alkali free softened glass fiber, and pulp, using the copying method to produce asbestos tiles. Different specifications of asbestos tiles can be made according to user needs.
1. The equipment for pressing and forming asbestos tiles in the production line includes: copying machine, fabric mixer, billet forming machine, billet receiving machine, direct press machine, pressing machine, edge cutting machine, tile suction machine, mixer, fan, vacuum machine, air-water separation, and conveyor.
2. The vacuum forming equipment for asbestos tile production line includes: copying machine, fabric mixer, billet forming machine, vacuum forming stacker crane, mixer, fan, vacuum machine, air-water separation, and conveyor.

Kinds of Asbestos tiles
Asbestos tiles are classified into three types based on wave distance and wave height: large wave tiles, medium wave tiles, and small wave tiles.
The wave distance of the large wave tile is 166mm and the wave height is 50mm;
The wave spacing of Zhongbo Wa is 131mm and the wave height is 33mm;
The wave spacing of the small wave is 63mm and the wave height is 14-17mm.
There are many specifications for each type of asbestos tile, but the commonly used specifications are 2800 × 944 × 8 (mm) (large wave) 1800 × 745 × 6 (mm) (medium wave), 1820 × 720 × 6 (mm) (wavelet).
Calcium Carbonate / Cement Board Felt
This felt is used for making calcium carbnate cement board felt.
1. The function of the cement board felt : It has three major functions in the manufacture of cement boards and tiles: forming, filtering water and transmitting and conveying;
2. The structure of cement board felt: It is a needle-punched felt with a multi-layer monofilament bottom mesh structure. The raw materials are composed of 100% nylon staple fibers and monofilaments. It is a safe product that is harmless to the human body;
3. The characteristics of cement board felt: It has the characteristics of uniform internal quality, good air permeability, fast water filtering, stable size, smooth operation and long service life.

The normal size for the cement board felt
Width range: 1.2-2.5m;
Length range: 8.0-50.0m;
Weight range: 1400-1700g/m2.
Sun Hong Group
We can help you to set up the factory, and design and layout the whole production process according your cost. We have calcium silicate board production line, cement tile making production line, fiber cement board production line, Welcome to contact us to get more details.

---
