PVC Window&Door Profile/WPC/PVC Ceiling/Wall Panel/WPC Decking Fencing Wall Cladding Extrusion Line

Product Description

PVC Window&Door Profile/WPC/PVC Ceiling/Wall Panel/WPC Decking Fencing Wall Cladding Extrusion Line
Product Description

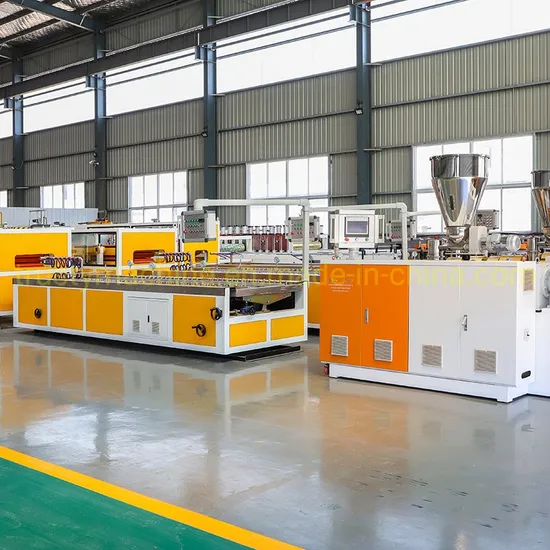

PVC window and door profile Extrusion LineRaw materail: PVC+Other chemicalProduct Introduction:The PVC door and window profile production line can choose different specifications of conical twin-screw extruders according to different profile sections and molds, and configure the corresponding vacuum calibration table, tractor, cutting machine, stacker and other auxiliary equipment.Technical Parameter:

Model	TPM-180	TPM-300	TPM-600
Max.width of product(mm)	180	300	600
Extruder model	SJSZ-51/105	SJSZ-65/132	SJSZ-80/156
Extrusion capacity(kg/h)	180	250	350
Motor power(kw)	22	37	55
Total length(m)	18	22	26

PVC/WPC Ceiling/Wall Panel Extrusion Line
Product Introduction
PVC profile production line is composed of cone twin screw extruder, vacuum calibration tank, haul-off, cutter, stacker, and also coordinated with different profile break-section and mould to produce PVC door&window profile,indoor floor, decoration plate material, profile and multi-hole wire plastic products etc.
This extrusion line also can be used to produce wpc profile extrusion line WPC Machine can be used after recycling, and has been widely used in fields of floor, guard bar, tray, packing cases, partition board, window and door sheath, skirting line, etc. Advantage of PVC/WPC wall panel
1.Easy installation,it can be installed directly onto concrete wall
2.No glue, the PVC/WPC wall panel are extruded directly, no glue used. Good for environment.
3.Multiple color choice. The PVC / WPC wall panel apply film lamination, so you can choose design and color which you like.
4.Easy to change. After use several years, if you want to redecorate the house, it is easy to take off from the wall and change to another design.
PVC/WPC Door Panel Extrusion Line
The PVC WPC door panel extrusion line is suitable for producing the preparatory PVC WPC door panel. We can provide the turnkey project for integrated door and door frame. The whole production line includes the PVC WPC door frame extrusion line, WPC door panel extrutsion line and subsequent processing equipments. The PVC WPC door has the advantages of fireproof, waterproof, anticaustic, moistureproof, mothproof, mildewproof and environmentally friendly. The PVC WPC doors can be widely used in interior doors, hospitel ward doors, school classroom door, various styles can be customized. Technical Parameter

	TPM-800	TPM-1000	TPM-1200
Extruder Model	80/156	92/188	92/188
Max.Width	800mm	1000mm	1200mm
Max.Extruder Capacity	350kg/h-380kg/h	450kg/h-500kg/h	500kg/h-550kg/h
Main Motor Power	90KW	110KW	110KW
Door Thickness	20-50mm	20-50mm	20-50mm

PE WPC Profile Extrusion Line Used for: PE WPC DECKING,FENCING,WALL CLADDING,BENCHES,PERGOLA,BEAM Raw material: 100%Recycled PE granules(30%)+Wood Powder(65%)+chemical(5%) Technical Parameter 1)For Pelletizing Production Line

Model	L/D ratio	Max.capacity	Motor power	Suitable material	Max.rotating speed	Wood powder percentage
SHJ-65	40:1	200-220kg/h	75kw	Pe+wood powder	500r/min	≤75%
SHJ-75	40:1	300-350kg/h	90kw	Pe+wood powder	500r/min	≤75%

2)For Profile Production Line

Model	TPM-65	TPM-80
Extruder model	SJSZ-65/132	SJSZ- 80/156
Motor power	37kw	75kw
Mac.Extrusion capacity	140-160kg/h	220-250kg/h
Co-extruder(Optional)	SJ35/28	SJ45/28

Main Production Line 1.SRL 500 Mixer
2.PE-WPC Pelletizing Production line 1)SHJ65/40 Parallel Twin Screw Extruder
2)SWP-380 Crusher
3)Three Stages Wind Cooling&Conveying System 3.PE-WPC Profile Production LIne 1)SJSZ65/132 Conical Twin Screw Extruder
2)Mould
3)Calibration Table
4)Cutting Machine
5)Stacker 4.Sanding Machine
5.Embossing Machine
6.Brushing Machine
Machine Photos
Company Profile
Qingdao Trusty Plastic Machinery Co., Ltd. is a professional plastic extrusion equipmentmanufacturer integrating design, research and development, production and sales.The company's main products are rich, the production technology is mature, and the after-sales service is guaranteed. Products are sold at home and abroad, such as: Brazil, Chile, Mexico, the Philippines, Italy, Russia, Pakistan, Vietnam, India, Algeria, Egypt and other countries.Our company is located in Qingdao, one of the plastic machinery bases in China, where the railway, sea transportation, aviation and other transportation systems are very complete. And it is one of the regions with rapid economic development in the coastal cities.The advantaged geographical conditions have provided great convenience for the development of the company's trade.Our company's main products are:PVC door and window profile production lineWPC wood-plastic profile production linePVC wall panel production linePVC/PE/PPR/PP pipe production linePP/PE/ABS board/sheet production linePVC/WPC crust foam board production linePE/PP/PC hollow sheet production linePVC roof tile production linePP/PET packing belt production lineAccording to customers' needs, to achieve diversified processing customization.Over the years, the company has always adhered to the tenet of "honesty for basis, quality for living, innovation as the theme, and development as the focus", abide by the quality commitment to users, and won the trust of customers.

---
