Onion Mesh Bag Circular Loom

Product Description

Product Description
Application:
To weave PP/HDPE fabric for woven bag, cement bag, rice bag, flour bag, pet food bag, animal food bag, fertilizer bag, chemical bag, etc.
Advantages:
Suitable for all kinds of quality tape
Good weaving quality
Low energy consumption
Low maintenance cost
Operator friendly
Best economic benefit

Product Parameters

Model	S-YZJ-750/4S
Number of shuttles	4 pcs
Working width, double-flat	160- 750mm
Rotational speed *	140 - 180r.p.m.
Weft insertion rate *	560 - 720p.p.m.
Weft density	23- 55wefts/100mm
Max. number of warp	512PCS
Inner dia. of warp/weft core	35mm
Length of warp/weft core	218mm
Max. dia. of warp bobbin	140mm
Max. dia. of weft bobbin	98mm
Length of warp/weft bobbin	200mm
Weight	1700kg
Driving main motor and control Warp in-feed motor and control Fabric haul-off and control Winder motor and control Length of winding core Max. dia. of winding roll Over dimensions (L×W×H)	2.2kw Controlled by Inverter and PLC Permanent magnet motor Controlled by Inverter and PLC: Permanent magnet motor Controlled by Inverter and PLC Permanent magnet motor Controlled by Inverter and PLC 950mm Ø1200mm 8500×2300×2730mm

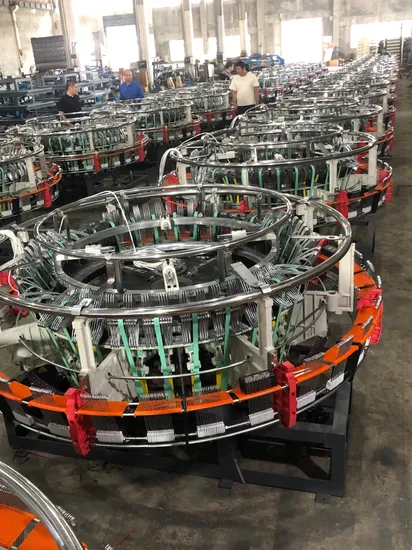

Detailed Photos
Company Profile
Since 1998, Zhejiang Tianfeng Plastic Machinery Co., Ltd. has been a professional manufacturer for designing, manufacturing and developing of the production machinery of plastic flexible weaving package products in China. The company has passed ISO9001:2008 international quality management system certification, is member of both China Plastics Processing Industry Association (CPPIA) and China Plastics Machinery Industry Association (CPMIA), the High & New Technological Enterprise (H.N.T.E.) of State.
The company covers a total area of over 65,000 m², including over 50,000 m² of workshops and office buildings.
Tianfeng Machinery supply not only independent machine with good quality and price, but also the whole production line solution for the whole plant with our good technology and rich experience. We are committed to provide our every customer the best reasonable and optimal production line solution to help them get best ROI (return on investment).
Our main products include: high-speed, middle-speed and economic type plastic tape extrusion production line, tape winder, circular loom, plastic extrusion coating machine, laminating machine, flexo printing machine, PP block bottom valve bag making machine (hot air welding), woven bag automatic cutting and sewing machine, plastic monofilament extrusion line, plastic rope making machine and other auxiliary machines. All of these products have successfully covered in 5 continents and more than 60 countries and regions in the globe, such as following:
Asia: China, Mongolia, North Korea, Kazakhstan, Uzbekistan, Turkmenistan, Tajikistan, Kyrgyzstan, Georgia, Azerbaijan, Indonesia, Malaysia, Vietnam, Thailand, Philippines, Myanmar, Cambodia, Laos, Bangladesh, India, Pakistan, Sri Lanka, Iran, Turkey, Iraq, Syria, Yemen, Jordan, Israe, Lebanon, Afghanistan, etc.
Africa: Egypt, Lybia, Tunisia, Algeria, Morocco, Ethiopia, Kenya, Tanzania, Uganda, Ghana, Nigeria, Chad, Cameroon, South Africa, Zambia, Angola, Zimbabwe, etc.
Europe: Russia, White Russia, Italy, Ukraine, Serbia, etc.
North America: U.S.A., Canada;
South America: Brazil, Mexico, Peru, Venezuela, Cuba, Uruguay, Paraguay, Ecuador, etc.
All along, we think that one important factor for our advances is from supporting each other between us and our every customer. We are willing to work together with our customers to develop, grow and succeed.

---
