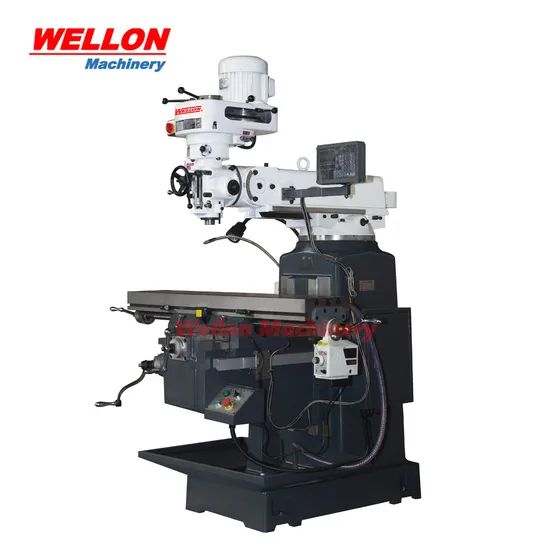

Turret Head Milling Machine 4h Vertical Milling Machine X6325

Product Description

Products Description:
Turret head milling machine 4H vertical milling machine X6325
Performence Features: X6325/X6330 Turret Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions available by use of the corresponding attachments as milling of helix slot, round surface, rack, gear and spline.
2.Rectangular guide way on Y-axis is featured a good rigidity and stability, The guide way on Radial Milling Machine saddle is lined with TF wearable material
3.High speed milling head from Taiwan
4.Harden the slide way and table surface
Technical parameter:

Model	X6325
Table size	254*1270
Long travel(mm)	850
Cross travel(mm)	420
Vertical travel(mm)	420
T-slot No.and size(mm)	3*16
Ram travel(mm)	470
Distance from spindle nose to table(mm)	0-420
Spindle speed	16steps: 66-4540
Spindle hole taper	R8 / ISO30
Auto.quill feed	3 steps 0.04/0.08/0.15
Spindle travel(mm)	127
Spindle motor	2.25kw/3hp
Head swivel	90°
Head tilting	45°
Dimension of package	1516*1550*2080
G.W/set(kgs)	1200/1300

Standard configuration:
Collet chuck kits
Drill chuck
Draw bar
Reduction sleeve
Work lamp
Electrical cabinet
Coolant system
Wrenches
Guide way protection
Optional parts:
3-axis DRO
X-axis auto power feed
Y-axis auto power feed
Z-axis auto power feed
Air draw bar
Variable speed
Machine vice 160mm
Separately operate panel box
