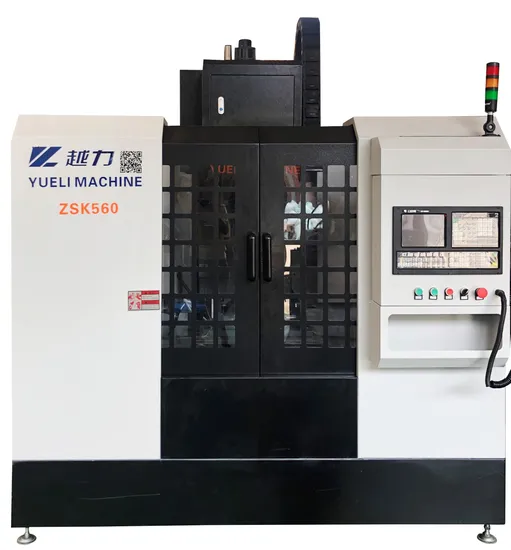

High Quality Vertical Machining Center Drilling Tapping Compound Machine

Product Description

High Quality Vertical Machining Center Drilling Tapping Compound Machine
I.Equipment description and pictures1.Simple vertical machining center, the number of axes is divided into 2 axes, 3 axes, 4 axes, the main shaft is fed by the sleeve.
2.Liner rail cross slides with HIWIN ball screw rod and high-strength roller wire linear rail.
3.BT40 Spindle taper for heavy duty cutting
II.Parameter:

No.	Name/Specification		2 axis linear rail	3 axis linear rail	4 axis linear rail
			ZSK 520	ZSK 530	ZSK 540A
1	Max travel of X-axis mm (screw rod)		400mm	400mm	400mm
2	Max travel of Y axis mm		280mm	280mm	280mm
3	Spindle Sleeve Diameter mm		105mm	105mm	105mm
4	Spindle taper		BT40	BT40	BT40
5	Max stroke of drilling axis mm		125mm	125mm	125mm
6	Max stroke of tapping axis mm		125mm	125mm	125mm
7	Spindle spacing mm		120mm(240mm)	120mm	120mm
8	Spindle end face to workbench mm		250/500mm	250/500mm	250/500mm
9	Max drilling diameter mm		50mm	50mm	50mm
10	Max tapping diameter mm		50mm	50mm	50mm
11	Spindle speed(tapping)RPM		3000r/min	3000r/min	3000r/min
12	Spindle motor power kW		5.5KW(7.5kW)	5.5KW(7.5kW)	5.5KW(7.5kW)
13	Dimension L x W x H:		1700*1850*2270mm	1700*1850*2270mm	1700*1850*2270mm
14	Net weight KG		1500KG	1500KG	1500KG

II.Detail Pictures:

III.Production workshop
IV.Certificate
Quanzhou Yueli Automation Equipment Co.,Ltd was founded in 2013,which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on.
If you have any interest, pls feel free to contact at any time.

---
