Basic Info.
Usage
GM Excavator, mini excavator
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Certification
ISO9001: 2000
Transport Package
According to Customers′ Requirments
Product Description

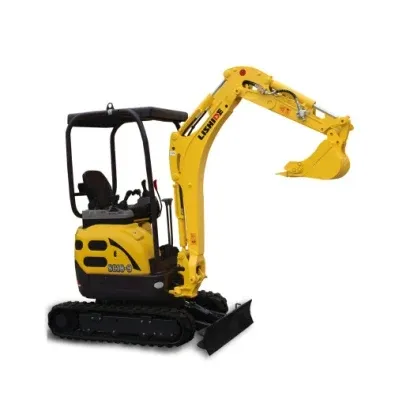

1 ton excavator mini digger 2 ton mini excavator for sale Product Description
| Model | SC18.9(YANMAR) |
| Weight:(T) | 1.75 |
| Bucket capacity:(m3) | 0.04 |
| Engine type: | 3TNV70 |
| power(kw/r/min) | 10.3 |
| Fuel tank capacity:(L) | 18 |
| walking spee(high/low):(km/h) | 4.9/2.5 |
| Rotary speed:(r/min) | 11.8 |
| climbing ability:(%) | 30 |
| Digging force: (KN) ISO | 18.8 |
| Arm digging force :(KN) ISO | |
| Ground pressure:(KPa) | 30.5 |
| Traction:(kN) | 16.8 |
| Hydraulic pump Model | MVP30.20D |
| Max flow:(L/min) | 48 |
| Working pressure:(MPa) | 24.5 |
| Tank capacity:(L) | 18 |
| A-Overall length(mm) | 3432 |
| B-Overall width(mm) | 1064 |
| C-Overall height(boom top)(mm) | 1172 |
| D-Overall height(cab top):(mm) | 2376 |
| E-Counterweight ground clearance:(mm) | 433 |
| F-Min ground clearance(mm) | 158 |
| G-Tail return radius(mm) | 676 |
| H-Track ground length(mm) | 1261 |
| J-Track length(mm) | 1622 |
| K-Track Gauge(mm) | 760 |
| L-Track width(mm) | 990/1240(max) |
| M-Track shoe width(mm) | 230 |
| N-width of the turntable(mm) | 1064 |
| O-Max digging height(mm) | 3441 |
| P- Max dump height(mm) | 2368 |
| Q-Max digging depth(mm) | 2379 |
| R-Max digging depth of vertical wall(mm) | 1716 |
| Max excavation distance(mm) | 3901 |
| U-Max digging distance in the ground plane(mm) | 3840 |
| V-Min radius(mm) | 1517 |
| X-the distance from the center of of rotation to the back end(mm) | 676 |
| Y-Caterpillar tooth Thickness (mm) | 16 |
| Z- Height of balancing (mm) | 1149 |
| A1-Length ground when transported(mm) | 2415 |
| Arm length(mm) | 950 |
| Boom length(mm) | 1830 |
| A3-(mm)Max lifting height of bulldozer | 230 |
| A4-(mm) Max depth of bulldozer | 156 |
the excavator fitted with YANMAR 3TNV70,10.3 KW, and CASAPPA pump , WOLFFU valve and TIANQI swing motor and NACHI traveling motor.
Certifications
Lishide Construction Machinery Co., Ltd. is a provincial and national green enterprise, it has passed dual system certification of ISO9001 quality and ISO4001 environment. As well our company has obtained dual certification of ISO45001 occupational health and ISO50001 energy manageme.
Company Profile
Lishide Construction Machinery Co., Ltd is one of the subsidiaries of Shandong Changlin Machinery Group.
Lishide company independently develops and produces a full range of excavators from 1 ton to
80 tons, which has won the unanimous praise of customers for its stable, reliable,
energy-saving and efficient product characteristics.
Lishide company has many years experience in construction machinery industry of senior
management leadership and team, gathered a group of core technical expert team with
many years of experience in product development and manufacturing of construction
machinery industry, With mature technology and management experience in product
research and development, manufacturing and operation management, the core
technology of product research and development of the company adopts the international
advanced technology platform, to achieve a high starting point, high positioning, and keep
pace with the international advanced technology. The company undertakes a number of
national and Shandong province research and development projects, and has obtained
more than 40 national patents.
After Sales Service
Video and online technical support
1 Year for machinery warranty|4 years for Core Components
Lead Time
| Quantity(sets) | 1--5 | >5 |
| Est. time (days) | 20 | To be negotiated |
