Single Rope Double Cylinder Winding Mine Hoist

Product Description

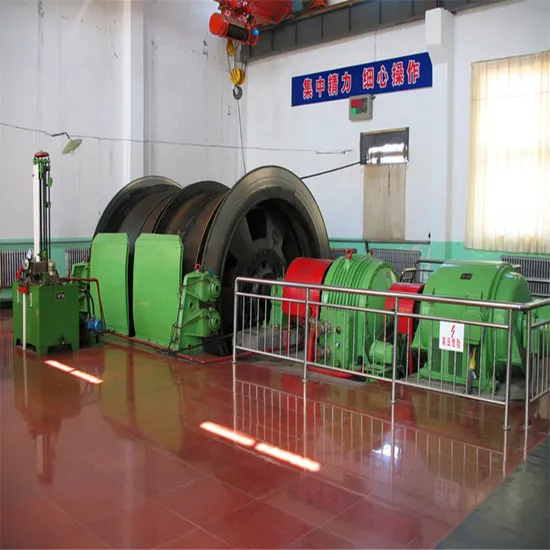

Single rope double cylinder winding mine hoist
Brief introduction of mine hoist:
Mine hoist can be divided into two kinds; one kind is JKE series single rope mining hoist and the other is Multi-rope friction hoist.
This series mine hoist including 2m-5m single tubular and double tubular types, and can be used for mining hoist, personnel lifting and material and equipment descending from vertical shafts or inclined shafts of coal, metal and nonmetal ores.
JK mine hoist is mainly used in inclined roadways and wells of coal mines, metal mines and non-metal mines to hoist or lower personnel and materials.

Technical parameter of single rope mine hoist:

Model	Drum				Tension PF	Tension Differe	Rope Diameter	Lift height (m)				Max Speed	Reduce speed ratio	Motor Speed
	N u m b e r	Dia	Width					1-layer	2-layer	3-layer
		m			KN		mm	m				m/s		r/min
JK-2×1.5/20	1	2.0		1.5	62		24	305	650		1025	5.2	20.0	1000
JK-2×1.5/31.5													31.5
JK-2×1.8/20				1.80				375	797		1246		20.0
JK-2×1.8/31.5													31.5
JK-2.5×2/20		2.5		2.00	83		28	448	945		1475	5.0	20.0	750
JK-2.5×2/31.5													31.5
JK-2.5×2.3/20				2.30				525	1100		1712		20.0
JK-2.5×2.3/31.5													31.5
JK-3×2.2/20		3.0		2.20	135		36	458	966		1513	6.0	20.0
2JK-2×1/11.2	2	2.0		1.00	62	40	24	182	406		652	7.0	11.2
2JK-2×1/20													20.0
2JK-2×1/31.5													31.5
2JK-2×1.25/11.2				1.25				242	528		838		11.2
2JK-2×1.25/20													20.0
2JK-2×1.25/31.5													31.5
2JK-2.5×1.2/11.2		2.5		1.20	83	65	28				843	8.8	11.2
2JK-2.5×1.2/20													20.0
2JK-2.5×1.2/31.5													31.5
2JK-2.5×1.5/11.2		2.5		1.50	83	65	28	319	685		1080	8.8	11.2
2JK-2.5×1.5/20													20.0
2JK-2.5×1.5/31.5													31.5
2JK-3×1.5/11.2		3.0			135	90	36	289	624		994	10.5	11.2
2JK-3×1.5/20													20.0
2JK-3×1.5/31.5													31.5
2JK-3×1.8/11.2				1.80				362	770		1217		11.2
2JK-3×1.8/20													20.0
2JK-3×1.8/31.5													31.5
2JK-3.5×1.7/11.2		3.5		1.70	170	115	40	349	746		-	12.6	11.2
2JK-3.5×1.7/20													20.0
2JK-3.5×2.1/11.2				2.10				450	950		-		11.2
2JK-3.5×2.1/11.2													20.0
2JK-4×2.1/10		4.0			245	160	48	421	891		-	12.6	10.0	600
2JK-4×2.1/11.2													11.2
2JK-4×2.1/20													20.0
2JK-5×2.3/10		5.0		2.30	280	180	52	533	-		-	12	10.0	500
2JK-5×2.3/11.2

---
