PV-4 Roof Type Machine Maquina Plancha Tipo PV-4

Product Description

Product Description :
Roof roll forming machines has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet. The ridge cap sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.

No.	pv-4 roof type machine maquina plancha tipo pv-4
1	Suitable to process	Color alu-zinc steel coil
2	Roller	15Rows
3	Dimensions	7.2*1.8*1.8m
4	Motor Power	4Kw
5	Pump Station Motor	4Kw.Lichao Brand
6	Thickness of the plate	0.3-0.8mm
7	Productivity	10-15m/min
8	Material of the cutting blade	Cr12,Quenched treatment 58ºC-60ºC
9	Diameter of the roller	Φ70mm
10	Weight	About 4200kgs
11	Main structure of the machine	350H beams
12	Processing precision	Within 1.0mm
13	Side panel of machine	16mm
14	Chain Wheel and Cycle Chain	1 Inch
15	Voltage	380V 50Hz 3phases or as customer's need
16	Control system	PLC control (Delta)
17	Frequency system	Delta
18	Drive mode	Motor driver
19	Touch screen	Delta
20	Rolling materials	45# forging steel with chromium plate
21	Length Tolerance	±2mm

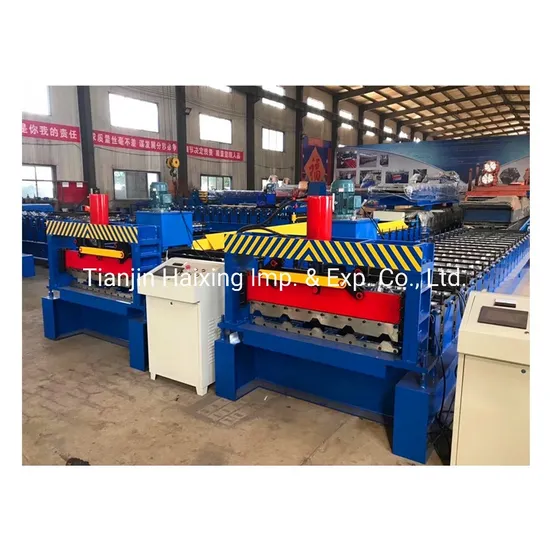

Details Images of pv-4 roof type machine maquina plancha tipo pv-4:
Production Flow of pv-4 roof type machine maquina plancha tipo pv-4:

Passive Decoiler	1Set
Feeding Platform with Pre-cutter	1Set
Roll Forming Machine	1Set
PLC Control System	1Set
Hydraulic Cutting System	1Set
Exit Rack for roofing production	2Pieces 3Meters
Spare parts	One carton box

Export standard packing of pv-4 roof type machine maquina plancha tipo pv-4:
1.The main body of the roll forming machine will be naked packing into the container,covered with plastic film.
2.Steel wire fix the machine into the container, in case any damage when shaking on the sea.
3.The spare parts will be packed into the carton box.
4.The received goods table put into carton box .
5.Manual decoiler naked package .
After Sales Service of pv-4 roof type machine maquina plancha tipo pv-4:
1. Warranty :One year,and we will provide technical support for whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment
3. Guarantee period: 24months free service/ pay service all the machine life
4. Installation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train yourworkers/technician face to face.
FAQ:
Q: Are you a trading company or a factory?
A: We are factory with professional production team and service consciousness just for exporting various types of cold roll
forming machines.
Q: Can a machine produce only one style panel profile?
A: Not complete. Suitable for wider and double layer manufacturing machines. It can produce more than 3 panels.
Q: How long does it take to manufacture the machine?
A: In general, the machine can be completed in 20 to 45 business days. But if you need machines urgently, we can save you time.
Q: Is there quality control when producing the production line?
A: Yes, we have a team that is responsible for quality control, including the laying of raw materials, processing rolls and other
parts, processing, assembly, testing and packaging on the roll surface and shaft.
Q: What can you do if the machine broken?
A: Our machine is warranted for 24 months. If the damaged part cannot be repaired, we can send a new part to replace the damaged
part, but you will need to pay the courier fee yourself. If the warranty period is exceeded, we can resolve the issue through
negotiation and we provide technical support for the entire life cycle of the device.
Q: What is your strength compared to other suppliers?
A: We will give you the best service. We will provide you with good advice that exceeds your requirements. These lines are easy to
install and have low maintenance requirements.
Q: Can we become your agent abroad?
A: Of course, if you have a business in the rolling forming line, we will welcome a lot of cooperation
