Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Turret, Gang Tools
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Name
Precision CNC Horizontal Turning Lathe
Max.Processing Length
300mm
Tool Post Type
Gang Tools CNC Lathe
Spindle Motor
5.5kw Servo Motor
Slant Bed
45 Degree Slant Bed CNC Lathe
Guideway
Taiwan Linear Guideway
Transport Package
Wooden Case
Specification
500mm diameter seal
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
200.00cm * 150.00cm * 200.00cm
Package Gross Weight
2500.000kg
Product Description

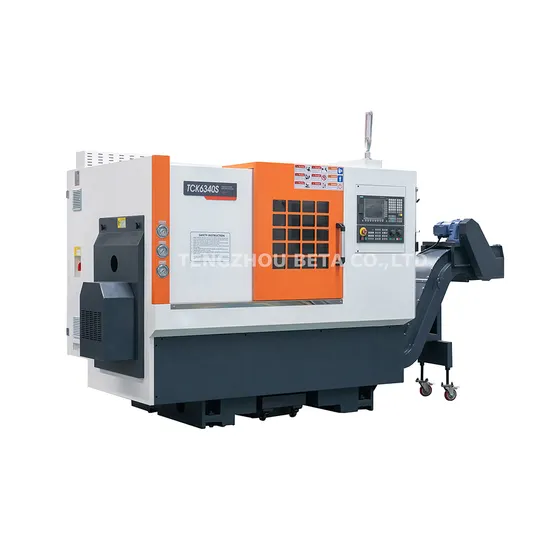

Cheap Price High Quality Precision CNC Horizontal Turning Lathe TCK6340S
(Taiwan Linear guideway, Without tailstock)
Standard accessories:
45 degree slant bed structure,
GSK CNC controller,
Spindle motor 5.5kw servo,
Taiwan linear guide ways,
A2-5 spindle unit 140 with maximum speed 3500rpm,
6" hollow type hydraulic collet with cylinder,
Gang type tools 4 pieces,
automatic lubrication system,
automatic cooling system,
work light
Full protection cover
Optional accessories:
Siemens/Fanuc CNC controller
Hydraulic turret
Servo Turret
Electric turret
| Model | Unit | TCK6340S |
| Swing over bed | mm | 400 |
| Swing over cross slide | mm | 140 |
| Max processing length | mm | 300 |
| X axis travel | mm | 400 |
| Z axis travel | mm | 500 |
| Spindle nose | | A2-5 |
| Spindle bore | mm | 56 |
| Bar capacity | mm | 45 |
| Max spindle speed | rpm | 3500 |
| Spindle motor | kw | 5.5 servo |
| X/Z axis repeatability | mm | 0.005 |
| X/Z axis feed motor torque | N.m | 6/6 |
| X/Z rapid traverse | mm/min | 18/15 |
| Tool post type | | Gang type tools |
| Cutting tool shape size | mm | 20*20 |
| Guide way type | | 45 degree slant bed |
| Total power capacity | kVA | 9/11 |
| Overall dimension | mm | 2390*1530*1780 |
| Weight | kg | 2600/2800 |
>>
