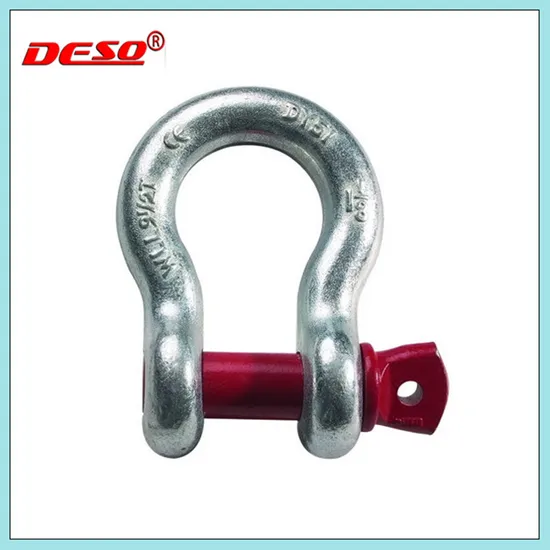

Quenched and Tempered Us Type Drop Forged Bow Shackle with Alloy Pin G209

Product Description

G209 Type US Screw Pin Bow Shackle Material:High quality alloy steel/carbon steel Size:Different size available (3/16"-3") Finish:Hot dip galvanized,eletro galvanized,painted,polish Standard Federal Specifications RR-C-271D Feature:Traceability code, capacity, Brand DESO and WLL embossed Forged quenched and tempered, with alloy pins Proof Load: Tested at 2 times of WLL Fatigue: tested at 1.5 times of WLL Safety factor:6:1 Packing Gunny bag or carton and pallet or as customer requirements. Delivery Time:10~30days,based on Qty Application:Lifting and connecting, Wire rope fittings, Chain fittings, Marine hardware fittings Traceability code, capacity, brand name and WLL embossed. Heat treatment: Forged quenched and tempered, with alloy pin. Can be Certified With ABS or other certifications Product Show
Data Sheet

SIZE	WLL (T)	DIMENSION									WEIGHT (KG)
		A	B	C	D	E	F	L	H	N
1/4"	0,50	11,9	7,85	28,7	6,35	19,8	15,5	32,5	46,7	6,35	0,05
5/16"	0,75	13,5	9,65	31,0	7,85	21,3	19,1	37,3	53,0	7,85	0,10
3/8"	1,00	16,8	11,2	36,6	9,65	26,2	23,1	45,2	63,0	9,65	0,15
7/16"	1,50	19,1	12,7	42,9	11,2	29,5	26,9	51,5	74,0	11,2	0,22
1/2"	2,00	20,6	16,0	47,8	12,7	33,3	30,2	58,5	83,5	12,7	0,36
5/8"	3,25	26,9	19,1	60,5	16,0	42,9	38,1	74,5	106	17,5	0,76
3/4"	4,75	31,8	22,4	71,5	19,1	51,0	46,0	59,0	126	20,6	1,23
7/8"	6,50	36,6	25,4	84,0	22,4	58,0	53,0	102	148	24,6	1,79
1"	8,50	42,9	28,7	95,5	25,4	68,5	60,5	119	167	26,9	2,57
1-1/8"	9,50	46,0	31,8	108	28,7	74,0	68,5	131	190	31,8	3,75
1-1/4"	12,00	51,5	35,1	119	31,8	82,5	76,0	146	210	35,1	5,31
1-3/8"	13,50	57,0	38,1	133	35,1	92,0	84,0	162	233	38,1	7,18
1-1/2"	17,00	60,5	41,4	146	38,1	98,5	92,0	175	254	41,1	9,43
1-3/4"	25,00	73,0	51,0	178	44,5	127	106	225	313	57,0	15,40
2"	35,00	82,5	57,0	197	51,0	146	122	256	348	61,0	23,70
2-1/2"	55,00	105	70,0	267	66,5	184	145	327	453	79,5	44,61
3"	85,00	127	82,5	330	76,0	200	165	365	546	92,0	70,00

For Cheaper Option,Shackles Can Be Supplied With Electrogalv,MBL is 4 Times Of The WLL
Packing:
Gunny Bag+Pallet
Strong Carton+Pallet
Application:
Related Products
G209/G210/G2130/G2150
About Us
Chongqing DESO Lifting Co., Ltd is committed to the developing and manufacturing High quality products which
are widely used for operations of heavy duty lifting, rigging, fastening, and material handling in mines, oil rigs,
mills, docks, and on ships. All the products we provide can be certified by registers BV, ABS, Lloyd' S, etc.Deso' History can be dated back to 1987, following The Policy Of Reform And opening of China, Our domestic and
global market with huge demand for lifting material, we begin our business first with Chain Hoist and Lever Hoist.
Our products with good reputation in China, and we also export goods to a few countries like USA, Germany etc.
By cooperating with some National stae-owned Imp&Exp enterprises.Deso gained the right to export in 2002 following the step of China' S joining WTO(World Trade Organization), we
are among the first companies with the authority to export in China. In order to meet the demand of our client
(Mainly for European and MID-East at that time), we expanded our products from Chain Block&Lever Block to
more lifting material. After the development of the past years, our high quality products with good price including:*US Type Shackles and Other Rigging Hardware.
*Chain Block&Lever Block.*G80 Chain, Hook, Master Link, Connecting Link, Chain Sling.*G100 Chain, Hook, Master Link, Connecting Link, Chain Sling.*Steel Wire Rope.*Webbing Sling&Round Sling Deso invested new factory and facility in Jiangsu Province2010, updated production line and facility guarantee us
improved quality and capacity, combined with our 27 years' S experience in the field of international trade. We find
our advantages to Survive and the right way to help our customer win the marketshare, that' S quality and service.When Buying From Deso You Are Buying More Than Products, You Are Buying Quality And Service
FAQ: Q1. Why choose us?
1.We are your one-stop service and solutions provider,certified by ISO9001.
2. Exporting to Europe,USA,Australia,Mid East,Southeast Asia and Africa.
3. Strict quality control and with long term quality inspection contract with CE SGS.
4. Products is underwritten by the China Property Insurance Company(PICC) as quality assurance for customer.
5.Pre-shipment quality inspection for customer by picture/video.
6. Meet Customized requirement on design and logo.
7. Small order acceptable.Can also include other products like wire rope ,rigging into one order.
Q2. How Can I order?
Please send inquiry here, we will reply as soon as possible.
Q3. Can I get discounts?
Yes. For big order and Frequent Customers, we give reasonable discount.
Q4. Can you add our own logo on the products?
Yes. We offer the service of adding customers' logo on the product.
We will have a agreement with each other and not supply products with your logo to others.
Q5.OEM and ODM acceptable?
Yes,we can produce according to customer's drawing,sample or requirement.
And can make customer's logo on products and packing according to requirement.

---
