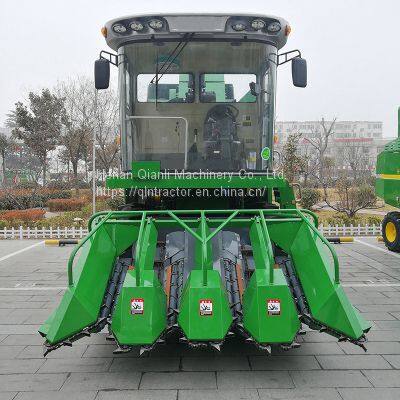

4 Rows Header Space Maize Picking Combine Corn Harvester Agriculture 4 Row Sweet Corn Harvester For Sale
* Suitable: Immature corn (green stalk) * Function：corn picker + peeler + Chop Stalker * Grain: to be collected automatically and fell in down tray while peeling * Compact structure * It even can cross rows to collect the maize * High rate of peeling, less broken grain * The cutting effect is good * Named brand engine, enough power * Strong gearbox and reliable * Visual imaging system
Model
| 4YZP-4D
|
Type
| Wheel self-propelled
|
Engine Rated Power (hp)
| 160
|
Engine Rotary speed (rpm)
| 2300
|
Overall Weight (kg)
| 7260
|
Overall dimension (mm)
| 6930*2560*3340
|
Working rows
| 4
|
Working width (mm)
| 2340
|
Application row width (mm)
| 450-650
|
Cutting center distance (mm)
| 550
|
Max. unloading height (mm)
| 2150
|
Conveyor Structural style
| Chain scraper
|
Min. Ground Clearance (mm)
| 300
|
Snapping roll/Board type
| Roll type
|
Snapping roll/Board type size (mm)
| Φ92*862
|
Stripping roller form
| Rubber Roller
|
stripping roller size (mm)
| Φ72*830
|
Qty of stripping rollers
| 20
|
Grain Tank Volume (L)
| 2000
|
Stalks crusher Working width (mm)
| 2250
|
Gearshift method
| Mechanical
|
Wheel Base (mm)
| 2930
|
Wheel Track (Guiding Wheel) (mm)
| 1640
|
Wheel Track (Driving Wheel) (mm)
| 1750
|
Tyre Size (Guiding Wheel)
| 10–15
|
Tyre Size (Driving Wheel)
| 15–24
|
